Quick Gyro MC² X7 DC - Antiroll Stabilizer
$0.00
* DUE TO SIZE AND WEIGHT, ALL GYROS HAVE A SHIPPING FEE. AN MMARINE REPRESENTATIVE WILL BE HAPPY TO ASSIST YOU WITH A SHIPPING ESTIMATE PRIOR TO PURCHASE.
contact us for pricing

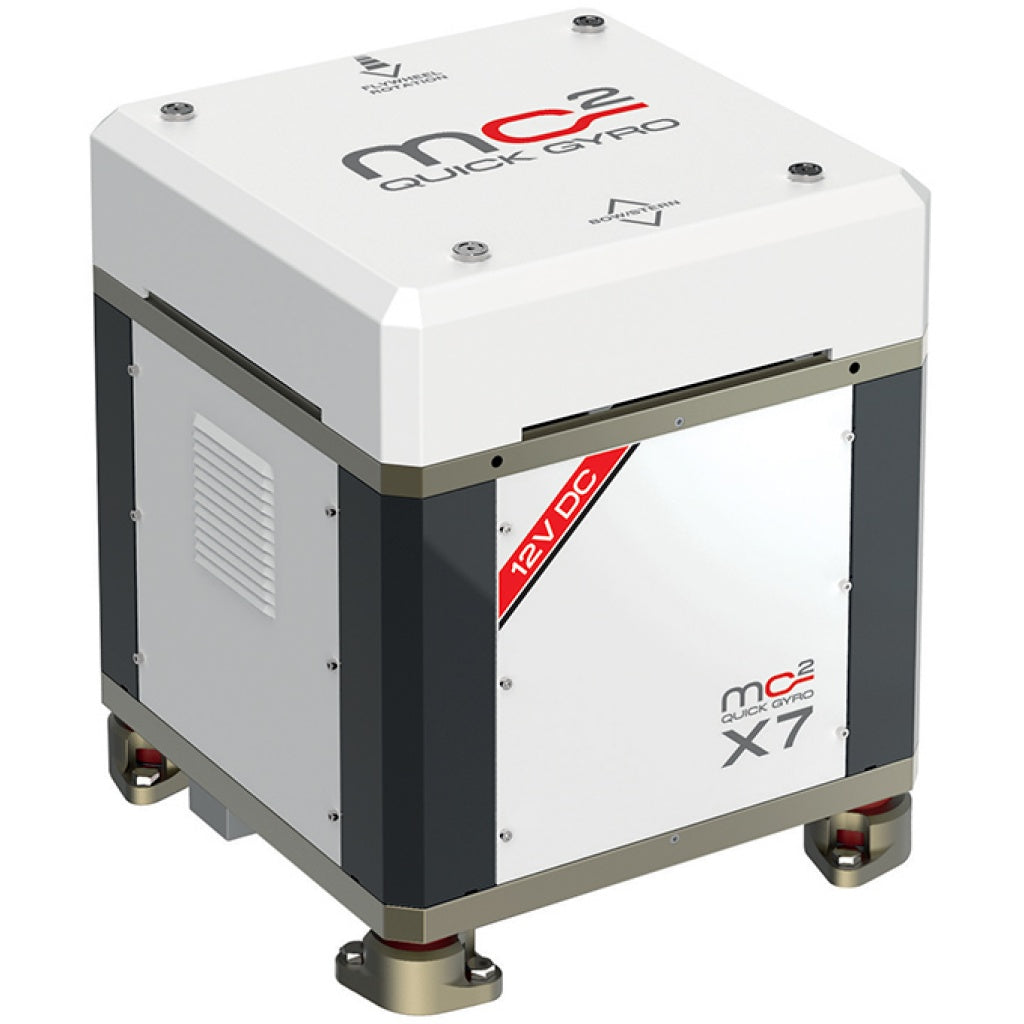

Quick Gyro MC² X7 DC - Antiroll Stabilizer
SKU
MC2X7DC
Product type
Stabilizers
List price
Sale price
$0.00
Date Created
21 / 12 / 2024
Product details
The latest in boat stabilizing technology
The MC²X series is the result of careful research, and a patented revolutionary vertically spinning mass that is air cooled.
The Quick research and development laboratories have introduced technical solutions that guarantee simpler operation and reduced maintenance, in a smaller machine.
- Market leading anti-roll output
- Simple air cooled operation
- Small compact design
- Reduced maintenance costs
- No cooling pumps to service
- Faster spool up time
- Easy switch off and walk away spool down
- Touch panel remote control with instant stand-by mode Gyros that work in any sea conditions and at any boat speed
- Worldwide 2 year 2000hr warranty
- Mobile app to measure gyro performance
MC²X Quick gyro stabilizers - For boats up to 250 tons
The MC²X Quick Gyro Stabilizers offer excellent performance with the boat at anchor or underway. The outstanding performance of the MC²X gyro stabilizers sets them apart from other gyro stabilizers on the market. The patented vertical spinning mass in the MC²X makes the units more compact, simpler to install and means that any maintenance work can be performed on board, even with the boat in the water.
The revolutionary vertically spinning mass generates less heat and as a result, the MC²X gyro stabilizers do not require water cooling systems. This means no need to install and maintain pumps or anodes. Maintenance is limited to periodic checks.
MC²X Remote control and mobile app convenience and control
The MC²X Quick Gyro Stabilizers are equipped with a remote touch panel to control the operation of the stabilizer, from activation (ON / OFF) to monitoring of performance and maintenance control. With MC²X you can record stabilization performance via the MC² Mobile app, which can be viewed on both iOS and Android systems.
Technical Specification
| MODEL
|
MC² X7 DC
|
| Rated speed (1)
|
4800 RPM
|
| Angular momentum (2)
|
2174 N·m·s
|
| Output torque (3)
|
6678 N·m
|
| Spool-up time to rated RPM
|
20 min
|
| Spool-up time to stabilization | 16 min |
| Power absorbed (4) | 700 ÷ 1100 W max |
| DC Input voltage | 12 Vdc |
| Circuit Breaker | 100A |
| Fuse | 100A |
| Frequency | 50-60 Hz |
| Noise output | < 70 dB |
| Ambient air temperature | da-10°C a +55°C |
| Weight (5) | 282 kg (621,7 lb) |
(1) Rated speed: flywheel speed (RPM: Revolutions per minute).
(2) Angular momentum: it quantifies the torque that is necessary to balance the system in the time unit (Newtons meter second).
(3) Output torque: torque generated by the rotor at rated speed (Newtons per meter).
(4) Sea state dependent.
(5) Weight with control unit, excluding optional base plate accessory, standard or custom.
Product details
The latest in boat stabilizing technology
The MC²X series is the result of careful research, and a patented revolutionary vertically spinning mass that is air cooled.
The Quick research and development laboratories have introduced technical solutions that guarantee simpler operation and reduced maintenance, in a smaller machine.
- Market leading anti-roll output
- Simple air cooled operation
- Small compact design
- Reduced maintenance costs
- No cooling pumps to service
- Faster spool up time
- Easy switch off and walk away spool down
- Touch panel remote control with instant stand-by mode Gyros that work in any sea conditions and at any boat speed
- Worldwide 2 year 2000hr warranty
- Mobile app to measure gyro performance
MC²X Quick gyro stabilizers - For boats up to 250 tons
The MC²X Quick Gyro Stabilizers offer excellent performance with the boat at anchor or underway. The outstanding performance of the MC²X gyro stabilizers sets them apart from other gyro stabilizers on the market. The patented vertical spinning mass in the MC²X makes the units more compact, simpler to install and means that any maintenance work can be performed on board, even with the boat in the water.
The revolutionary vertically spinning mass generates less heat and as a result, the MC²X gyro stabilizers do not require water cooling systems. This means no need to install and maintain pumps or anodes. Maintenance is limited to periodic checks.
MC²X Remote control and mobile app convenience and control
The MC²X Quick Gyro Stabilizers are equipped with a remote touch panel to control the operation of the stabilizer, from activation (ON / OFF) to monitoring of performance and maintenance control. With MC²X you can record stabilization performance via the MC² Mobile app, which can be viewed on both iOS and Android systems.
Technical Specification
Technical Specification
| MODEL
|
MC² X7 DC
|
| Rated speed (1)
|
4800 RPM
|
| Angular momentum (2)
|
2174 N·m·s
|
| Output torque (3)
|
6678 N·m
|
| Spool-up time to rated RPM
|
20 min
|
| Spool-up time to stabilization | 16 min |
| Power absorbed (4) | 700 ÷ 1100 W max |
| DC Input voltage | 12 Vdc |
| Circuit Breaker | 100A |
| Fuse | 100A |
| Frequency | 50-60 Hz |
| Noise output | < 70 dB |
| Ambient air temperature | da-10°C a +55°C |
| Weight (5) | 282 kg (621,7 lb) |
(1) Rated speed: flywheel speed (RPM: Revolutions per minute).
(2) Angular momentum: it quantifies the torque that is necessary to balance the system in the time unit (Newtons meter second).
(3) Output torque: torque generated by the rotor at rated speed (Newtons per meter).
(4) Sea state dependent.
(5) Weight with control unit, excluding optional base plate accessory, standard or custom.
Dimensional Drawing
Dimensional Drawing
| without base plate
|
Width: 474 mm (18.66 in.) Height: 566 mm (22.28 in.) Length: 474 mm (18.66 in.) |
| with base plate
|
Width: 480 mm (18.89 in.) Height: 581 mm (22.87 in.) Length: 480 mm (18.89 in.) |
Without Base Plate
With Base Plate
