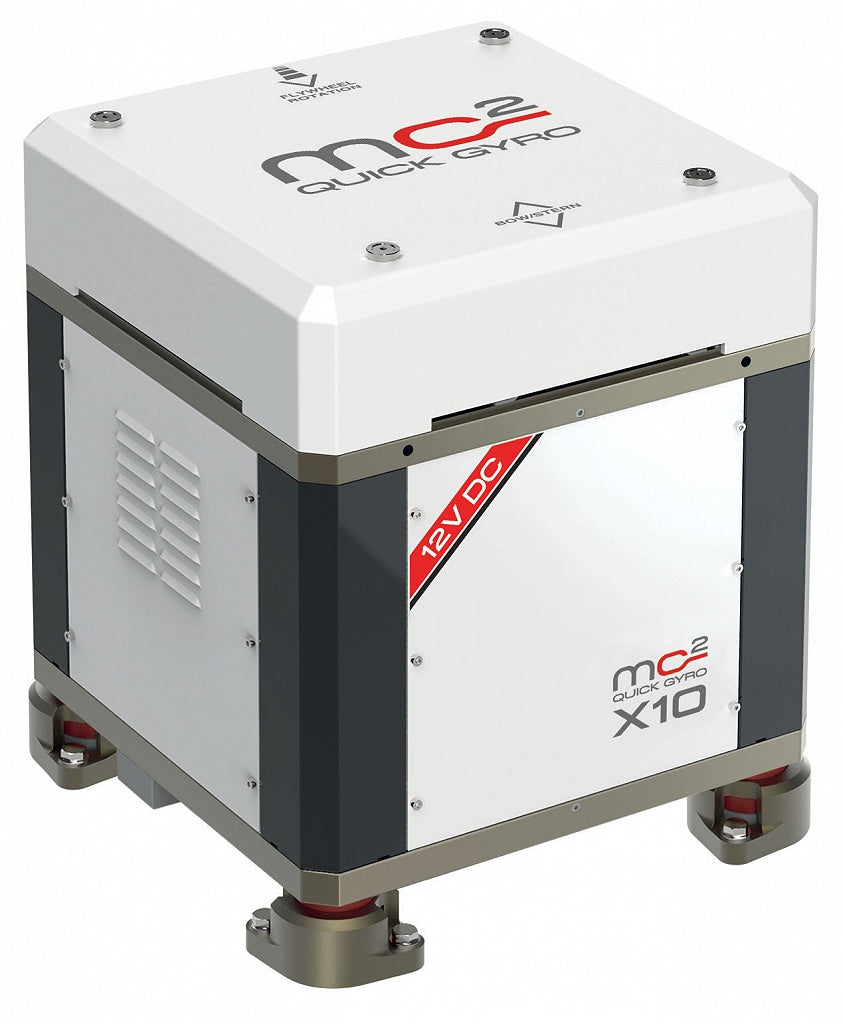

Quick Gyro MC² X10 DC - Antiroll Stabilizer
SALE
BEST SELLER
NEW
$0.00
* DUE TO SIZE AND WEIGHT, ALL GYROS HAVE A SHIPPING FEE. AN MMARINE REPRESENTATIVE WILL BE HAPPY TO ASSIST YOU WITH A SHIPPING ESTIMATE PRIOR TO PURCHASE.
contact us for pricing
Quick Gyro MC² X10 DC - Antiroll Stabilizer
SKU
MC2X10DC
Product type
Stabilizers
List price
Sale price
$0.00
Date Created
25 / 11 / 2024
Product details
The latest in boat stabilizing technology
The MC²X series is the result of careful research, and a patented revolutionary vertically spinning mass that is air cooled.
The Quick research and development laboratories have introduced technical solutions that guarantee simpler operation and reduced maintenance, in a smaller machine.
- Market leading anti-roll output
- Simple air cooled operation
- Small compact design
- Reduced maintenance costs
- No cooling pumps to service
- Faster spool up time
- Easy switch off and walk away spool down
- Touch panel remote control with instant stand-by mode Gyros that work in any sea conditions and at any boat speed
- Worldwide 2 year 2000hr warranty
- Mobile app to measure gyro performance
MC²X Quick gyro stabilizers - For boats up to 250 tons
The MC²X Quick Gyro Stabilizers offer excellent performance with the boat at anchor or underway. The outstanding performance of the MC²X gyro stabilizers sets them apart from other gyro stabilizers on the market. The patented vertical spinning mass in the MC²X makes the units more compact, simpler to install and means that any maintenance work can be performed on board, even with the boat in the water.
The revolutionary vertically spinning mass generates less heat and as a result, the MC²X gyro stabilizers do not require water cooling systems. This means no need to install and maintain pumps or anodes. Maintenance is limited to periodic checks.
MC²X Remote control and mobile app convenience and control
The MC²X Quick Gyro Stabilizers are equipped with a remote touch panel to control the operation of the stabilizer, from activation (ON / OFF) to monitoring of performance and maintenance control. With MC²X you can record stabilization performance via the MC² Mobile app, which can be viewed on both iOS and Android systems.
Technical Specification
| MODEL
|
MC² X10 DC
|
| Rated speed (1)
|
6000 RPM
|
| Angular momentum (2)
|
3120 N·m·s
|
| Output torque (3)
|
10342 N·m
|
| Spool-up time to rated RPM
|
24 min
|
| Spool-up time to stabilization | 20 min |
| Power absorbed (4) | 1200 ÷ 1600 W max |
| DC Input voltage | 12 Vdc |
| Circuit Breaker | 200A |
| Fuse | 200A |
| Frequency | 50-60 Hz |
| Noise output | < 70 dB |
| Ambient air temperature | da-10°C a +55°C |
| Weight (5) | 301 kg (663,6 lb) |
(1) Rated speed: flywheel speed (RPM: Revolutions per minute).
(2) Angular momentum: it quantifies the torque that is necessary to balance the system in the time unit (Newtons meter second).
(3) Output torque: torque generated by the rotor at rated speed (Newtons per meter).
(4) Sea state dependent.
(5) Weight with control unit, excluding optional base plate accessory, standard or custom.
Product details
The latest in boat stabilizing technology
The MC²X series is the result of careful research, and a patented revolutionary vertically spinning mass that is air cooled.
The Quick research and development laboratories have introduced technical solutions that guarantee simpler operation and reduced maintenance, in a smaller machine.
- Market leading anti-roll output
- Simple air cooled operation
- Small compact design
- Reduced maintenance costs
- No cooling pumps to service
- Faster spool up time
- Easy switch off and walk away spool down
- Touch panel remote control with instant stand-by mode Gyros that work in any sea conditions and at any boat speed
- Worldwide 2 year 2000hr warranty
- Mobile app to measure gyro performance
MC²X Quick gyro stabilizers - For boats up to 250 tons
The MC²X Quick Gyro Stabilizers offer excellent performance with the boat at anchor or underway. The outstanding performance of the MC²X gyro stabilizers sets them apart from other gyro stabilizers on the market. The patented vertical spinning mass in the MC²X makes the units more compact, simpler to install and means that any maintenance work can be performed on board, even with the boat in the water.
The revolutionary vertically spinning mass generates less heat and as a result, the MC²X gyro stabilizers do not require water cooling systems. This means no need to install and maintain pumps or anodes. Maintenance is limited to periodic checks.
MC²X Remote control and mobile app convenience and control
The MC²X Quick Gyro Stabilizers are equipped with a remote touch panel to control the operation of the stabilizer, from activation (ON / OFF) to monitoring of performance and maintenance control. With MC²X you can record stabilization performance via the MC² Mobile app, which can be viewed on both iOS and Android systems.
Technical Specification
Technical Specification
| MODEL
|
MC² X10 DC
|
| Rated speed (1)
|
6000 RPM
|
| Angular momentum (2)
|
3120 N·m·s
|
| Output torque (3)
|
10342 N·m
|
| Spool-up time to rated RPM
|
24 min
|
| Spool-up time to stabilization | 20 min |
| Power absorbed (4) | 1200 ÷ 1600 W max |
| DC Input voltage | 12 Vdc |
| Circuit Breaker | 200A |
| Fuse | 200A |
| Frequency | 50-60 Hz |
| Noise output | < 70 dB |
| Ambient air temperature | da-10°C a +55°C |
| Weight (5) | 301 kg (663,6 lb) |
(1) Rated speed: flywheel speed (RPM: Revolutions per minute).
(2) Angular momentum: it quantifies the torque that is necessary to balance the system in the time unit (Newtons meter second).
(3) Output torque: torque generated by the rotor at rated speed (Newtons per meter).
(4) Sea state dependent.
(5) Weight with control unit, excluding optional base plate accessory, standard or custom.
Dimensional Drawing
Dimensional Drawing
| without base plate
|
Width: 488 mm (19.21 in.) Height: 573 mm (22.55 in.) Length: 488 mm (19.21 in.) |
| with base plate
|
Width: 500 mm (19.68 in.) Height: 593 mm (23.34 in.) Length: 500 mm (19.68 in.) |
Without Base Plate
With Base Plate
Technical documents
Videos
Test of MC² X7 on Greenline 39
1 x MC² X7
MC² X on Pardo50
Here a great dockside demo in Miami of Pardo Yachts 50 with our MC² X Anti-Roll Gyro Stabilizer stabilizing power!
Test of MC² X7 Gyro Stabilizer by Quick at Miami Yacht Show
Here a great dockside demo in Miami of Pardo Yachts 50 with our MC² X Anti-Roll Gyro Stabilizer stabilizing power!
Test of MC² X30 on Gulf Craft Nomad65
Test of MC² X16 on SeaFaring 44 Fly
1 x MC² X16
Test of MC² X16 on Princess V45
1 x MC² X16
Test of MC² X40 on Rodman muse 74
1 x MC² X40
Test of MC² X16 on Astondoa 76 GLX
4 x MC² X16
Test of MC² X13 on Monachus 45
Test of MC² X16 on GreenLine 48 #50
