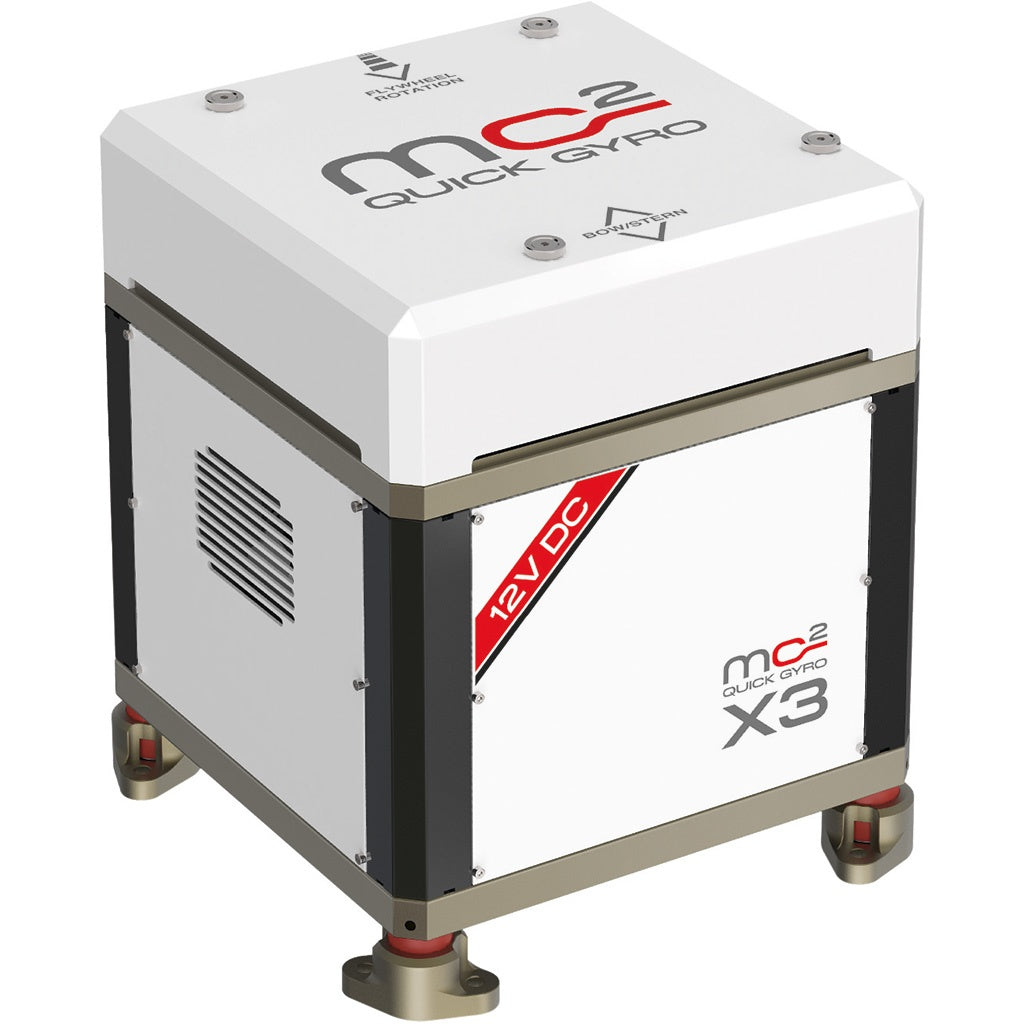

Quick Gyro MC² X3 DC - Antiroll Stabilizer

Quick Gyro MC² X3 DC - Antiroll Stabilizer
BEST SELLER
SALE
Quick Gyro MC² X3 DC - Antiroll Stabilizer
$0.00
Save
* DUE TO SIZE AND WEIGHT, ALL GYROS HAVE A SHIPPING FEE. AN MMARINE REPRESENTATIVE WILL BE HAPPY TO ASSIST YOU WITH A SHIPPING ESTIMATE PRIOR TO PURCHASE.
Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

Quick Gyro MC² X3 DC - Antiroll Stabilizer

SKU MC2X3DC
Product type Stabilizers
List price
Sale price
$0.00
Date Created 08 / 12 / 2024
QA code
Quick Gyro MC² X3 DC - Antiroll Stabilizer

Product details

The latest in boat stabilizing technology
The MC²X series is the result of careful research, and a patented revolutionary vertically spinning mass that is air cooled.

The Quick research and development laboratories have introduced technical solutions that guarantee simpler operation and reduced maintenance, in a smaller machine.

Features
  • Market leading anti-roll output
  • Simple air cooled operation
  • Small compact design
  • Reduced maintenance costs
  • No cooling pumps to service
  • Faster spool up time
  • Easy switch off and walk away spool down
  • Touch panel remote control with instant stand-by mode Gyros that work in any sea conditions and at any boat speed
  • Worldwide 2 year 2000hr warranty
  • Mobile app to measure gyro performance

MC²X Quick gyro stabilizers -  For boats up to 250 tons
The MC²X Quick Gyro Stabilizers offer excellent performance with the boat at anchor or underway. The outstanding performance of the MC²X gyro stabilizers sets them apart from other gyro stabilizers on the market. The patented vertical spinning mass in the MC²X makes the units more compact, simpler to install and means that any maintenance work can be performed on board, even with the boat in the water.

The revolutionary vertically spinning mass generates less heat and as a result, the MC²X gyro stabilizers do not require water cooling systems. This means no need to install and maintain pumps or anodes. Maintenance is limited to periodic checks.

MC²X Remote control and mobile app convenience and control
The MC²X Quick Gyro Stabilizers are equipped with a remote touch panel to control the operation of the stabilizer, from activation (ON / OFF) to monitoring of performance and maintenance control. With MC²X you can record stabilization performance via the MC² Mobile app, which can be viewed on both iOS and Android systems.

Technical Specification

MODEL
MC² X3 DC
Rated speed (1)
7000 RPM
Angular momentum (2)
643 N·m·s
Output torque (3)
3900 N·m
Spool-up time to rated RPM
15 min
Spool-up time to stabilization 10 min
Power absorbed (4) 650 ÷ 900 W max
DC Input voltage 12 Vdc
Circuit Breaker 100A
Fuse 100A
Frequency 50-60 Hz
Noise output < 70 dB
Ambient air temperature -10°C / +55°C
Weight (5) 130 kg (286,6 lb)


(1) Rated speed: flywheel speed (RPM: Revolutions per minute).

(2) Angular momentum: it quantifies the torque that is necessary to balance the system in the time unit (Newtons meter second).

(3) Output torque: torque generated by the rotor at rated speed (Newtons per meter).

(4) Sea state dependent.

(5) Weight with control unit, excluding optional base plate accessory, standard or custom.

Product details

The latest in boat stabilizing technology
The MC²X series is the result of careful research, and a patented revolutionary vertically spinning mass that is air cooled.

The Quick research and development laboratories have introduced technical solutions that guarantee simpler operation and reduced maintenance, in a smaller machine.

Features
  • Market leading anti-roll output
  • Simple air cooled operation
  • Small compact design
  • Reduced maintenance costs
  • No cooling pumps to service
  • Faster spool up time
  • Easy switch off and walk away spool down
  • Touch panel remote control with instant stand-by mode Gyros that work in any sea conditions and at any boat speed
  • Worldwide 2 year 2000hr warranty
  • Mobile app to measure gyro performance

MC²X Quick gyro stabilizers -  For boats up to 250 tons
The MC²X Quick Gyro Stabilizers offer excellent performance with the boat at anchor or underway. The outstanding performance of the MC²X gyro stabilizers sets them apart from other gyro stabilizers on the market. The patented vertical spinning mass in the MC²X makes the units more compact, simpler to install and means that any maintenance work can be performed on board, even with the boat in the water.

The revolutionary vertically spinning mass generates less heat and as a result, the MC²X gyro stabilizers do not require water cooling systems. This means no need to install and maintain pumps or anodes. Maintenance is limited to periodic checks.

MC²X Remote control and mobile app convenience and control
The MC²X Quick Gyro Stabilizers are equipped with a remote touch panel to control the operation of the stabilizer, from activation (ON / OFF) to monitoring of performance and maintenance control. With MC²X you can record stabilization performance via the MC² Mobile app, which can be viewed on both iOS and Android systems.

Technical Specification

Technical Specification

MODEL
MC² X3 DC
Rated speed (1)
7000 RPM
Angular momentum (2)
643 N·m·s
Output torque (3)
3900 N·m
Spool-up time to rated RPM
15 min
Spool-up time to stabilization 10 min
Power absorbed (4) 650 ÷ 900 W max
DC Input voltage 12 Vdc
Circuit Breaker 100A
Fuse 100A
Frequency 50-60 Hz
Noise output < 70 dB
Ambient air temperature -10°C / +55°C
Weight (5) 130 kg (286,6 lb)


(1) Rated speed: flywheel speed (RPM: Revolutions per minute).

(2) Angular momentum: it quantifies the torque that is necessary to balance the system in the time unit (Newtons meter second).

(3) Output torque: torque generated by the rotor at rated speed (Newtons per meter).

(4) Sea state dependent.

(5) Weight with control unit, excluding optional base plate accessory, standard or custom.

Dimensional Drawing

Dimensional Drawing

without base plate

Width: 419 mm (16.49 in.)

Height: 478 mm (18.81 in.)

Length: 419 mm (16.49 in.)

with base plate

Width: 420 mm (16.53 in.)

Height: 493 mm (19.40 in.)

Length: 420 mm (16.53 in.)


Without Base Plate


With Base Plate


parts

    $99.89
    In stock
      $64.99
      In stock

      Technical documents

      Videos

      Test of MC² X7 on Greenline 39

      1 x MC² X7

      MC² X on Pardo50

      Here a great dockside demo in Miami of Pardo Yachts 50 with our MC² X Anti-Roll Gyro Stabilizer stabilizing power!

      Test of MC² X7 Gyro Stabilizer by Quick at Miami Yacht Show

      Here a great dockside demo in Miami of Pardo Yachts 50 with our MC² X Anti-Roll Gyro Stabilizer stabilizing power!

      Test of MC² X30 on Gulf Craft Nomad65

      Test of MC² X16 on SeaFaring 44 Fly

      1 x MC² X16

      Test of MC² X16 on Princess V45

      1 x MC² X16

      Test of MC² X40 on Rodman muse 74

      1 x MC² X40

      Test of MC² X16 on Astondoa 76 GLX

      4 x MC² X16

      Test of MC² X13 on Monachus 45

      Test of MC² X16 on GreenLine 48 #50

      Print friendly

      Download this print friendly page


      Compare with similar items

      Rated speed (1)
      Angular momentum (2)
      Output torque (3)
      Spool-up time to rated RPM
      Spool-up time to stabilization
      Power absorbed (4)
      DC Input voltage
      Circuit Breaker
      Fuse
      Frequency
      Noise output
      Ambient air temperature
      Weight (5)

      MC2X2DC

      $0.00
      Buy now
      Pre-order
      Rated speed (1)
      6000 RPM
      Angular momentum (2)
      551 N·m·s
      Output torque (3)
      2000 N·m
      Spool-up time to rated RPM
      10 min
      Spool-up time to stabilization
      8 min
      Power absorbed (4)
      400 ÷ 700 W max
      DC Input voltage
      12 Vdc
      Circuit Breaker
      80A
      Fuse
      60A
      Frequency
      50-60 Hz
      Noise output
      < 70 dB
      Ambient air temperature
      -10°C / +55°C
      Weight (5)
      130 kg (286

      MC2X3DC

      $0.00
      Buy now
      Pre-order
      Rated speed (1)
      7000 RPM
      Angular momentum (2)
      643 N·m·s
      Output torque (3)
      3900 N·m
      Spool-up time to rated RPM
      15 min
      Spool-up time to stabilization
      10 min
      Power absorbed (4)
      650 ÷ 900 W max
      DC Input voltage
      12 Vdc
      Circuit Breaker
      100A
      Fuse
      100A
      Frequency
      50-60 Hz
      Noise output
      < 70 dB
      Ambient air temperature
      -10°C / +55°C
      Weight (5)
      130 kg (286

      MC2X5DC

      $0.00
      Buy now
      Pre-order
      Rated speed (1)
      4800 RPM
      Angular momentum (2)
      1722 N·m·s
      Output torque (3)
      5340 N·m
      Spool-up time to rated RPM
      18 min
      Spool-up time to stabilization
      14 min
      Power absorbed (4)
      700 ÷ 990 W max
      DC Input voltage
      12 Vdc
      Circuit Breaker
      100A
      Fuse
      100A
      Frequency
      50-60 Hz
      Noise output
      < 70 dB
      Ambient air temperature
      da-10°C a +55°C
      Weight (5)
      200 kg (440 lb)

      MC2X7DC

      $0.00
      Buy now
      Pre-order
      Rated speed (1)
      4800 RPM
      Angular momentum (2)
      2174 N·m·s
      Output torque (3)
      6678 N·m
      Spool-up time to rated RPM
      20 min
      Spool-up time to stabilization
      16 min
      Power absorbed (4)
      700 ÷ 1100 W max
      DC Input voltage
      12 Vdc
      Circuit Breaker
      100A
      Fuse
      100A
      Frequency
      50-60 Hz
      Noise output
      < 70 dB
      Ambient air temperature
      da-10°C a +55°C
      Weight (5)
      282 kg (621

      MC2X10DC

      $0.00
      Buy now
      Pre-order
      Rated speed (1)
      6000 RPM
      Angular momentum (2)
      3120 N·m·s
      Output torque (3)
      10342 N·m
      Spool-up time to rated RPM
      24 min
      Spool-up time to stabilization
      20 min
      Power absorbed (4)
      1200 ÷ 1600 W max
      DC Input voltage
      12 Vdc
      Circuit Breaker
      200A
      Fuse
      200A
      Frequency
      50-60 Hz
      Noise output
      < 70 dB
      Ambient air temperature
      da-10°C a +55°C
      Weight (5)
      301 kg (663

      MC2X13DC

      $0.00
      Buy now
      Pre-order
      Rated speed (1)
      4800 RPM
      Angular momentum (2)
      4185 N·m·s
      Output torque (3)
      12850 N·m
      Spool-up time to rated RPM
      32 min
      Spool-up time to stabilization
      30 min
      Power absorbed (4)
      1500 ÷ 2000 W max
      DC Input voltage
      12 Vdc
      Circuit Breaker
      200A
      Fuse
      200A
      Frequency
      50-60 Hz
      Noise output
      < 70 dB
      Ambient air temperature
      -10°C a +55°C
      Weight (5)
      461 kg (1016
