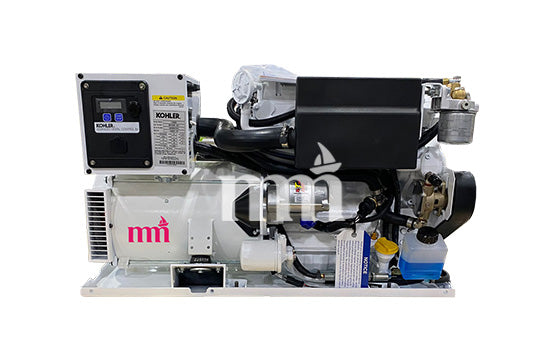

Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield

Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
25% OFF
SALE
BEST SELLER
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield
$12,199.00
$16,304.00 Save $4,105.00
* DUE TO SIZE AND WEIGHT, ALL GENERATORS HAVE A SHIPPING FEE. AN MMARINE REPRESENTATIVE WILL BE HAPPY TO ASSIST YOU WITH A SHIPPING ESTIMATE PRIOR TO PURCHASE.
Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield

SKU 11EKOZD
Product type Marine Generators
List price $16,304.00
Sale price
$12,199.00
Date Created 03 / 12 / 2024
Kohler 11kW - Marine Diesel Generator 11EKOZD, 12v, 60Hz, 1 PH without Sound Shield

Product details

Kohlers 11EKOZD Marine Diesel Generator is an optimal selection for marine projects. This single-phase, 60Hz model produces up to 12v of trustworthy output, Constructed with durability in mind, the 11EKOZD is an ideal choice to supply power to your vessel.



  • Frequency 60 Hz
  • kW 11
  • Controller ADC IId Advanced Digital Control
  • Fuel Type Diesel
  • Alternator Type 4-pole, rotating-field
  • Engine Manufacturer Kohler


Engine features:

  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.
  • Closed cooling system
  • Heat exchanger
  • Oil drain valve
Generator features:
  • Remote start 12-pin connector
  • Voltage regulation of ±1.0%
  • Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
  • Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
  • Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.



Engine Features

  • Diesel fueled
  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards
  • Four cylinder
  • Four cycle
  • Closed cooling system
  • Heat exchanger
  • Electric fuel lift pump
  • Lifting eye

Generator Features

  • Remote start 12-pin connector
  • Class H insulation
  • Multivoltage adjustability
  • Voltage regulation of 1.0%
  • Radio suppression

ADC IId Advanced Digital Control Features

  • Designed for today’s most sophisticated electronics
  • Easy to read 12 x 2 LCD alpha-numeric display
  • Compact, integrally mounted control
  • Sealed connectors for maximum corrosion protection
  • SAE J1939, SmartCraftt, NMEA 2000 selectable CANbus outputs
  • Remote monitoring of fault conditions
  • Push button dial for configuration and adjustment
  • Programmed crank cycle

Product details

Kohlers 11EKOZD Marine Diesel Generator is an optimal selection for marine projects. This single-phase, 60Hz model produces up to 12v of trustworthy output, Constructed with durability in mind, the 11EKOZD is an ideal choice to supply power to your vessel.



  • Frequency 60 Hz
  • kW 11
  • Controller ADC IId Advanced Digital Control
  • Fuel Type Diesel
  • Alternator Type 4-pole, rotating-field
  • Engine Manufacturer Kohler


Engine features:

  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.
  • Closed cooling system
  • Heat exchanger
  • Oil drain valve
Generator features:
  • Remote start 12-pin connector
  • Voltage regulation of ±1.0%
  • Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
  • Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
  • Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.



Technical Specification

Engine Features

  • Diesel fueled
  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards
  • Four cylinder
  • Four cycle
  • Closed cooling system
  • Heat exchanger
  • Electric fuel lift pump
  • Lifting eye

Generator Features

  • Remote start 12-pin connector
  • Class H insulation
  • Multivoltage adjustability
  • Voltage regulation of 1.0%
  • Radio suppression

ADC IId Advanced Digital Control Features

  • Designed for today’s most sophisticated electronics
  • Easy to read 12 x 2 LCD alpha-numeric display
  • Compact, integrally mounted control
  • Sealed connectors for maximum corrosion protection
  • SAE J1939, SmartCraftt, NMEA 2000 selectable CANbus outputs
  • Remote monitoring of fault conditions
  • Push button dial for configuration and adjustment
  • Programmed crank cycle

Dimensional Drawing

Dimensional Drawing

Generator without sound shield

Width: 449 mm (17.68 in.)

Height: 536 mm (21.12 in.)

Length: 922mm (36.32 in.)

Weight, dry: 235 kg (517 lbs)

Weight, wet: 241 kg (532 lbs)




Technical documents

Print friendly

Download this print friendly page


Compare with similar items

kW
Frequency
Fuel
Cylinder
Controller
Width
Height
Length
Weight
dry

6EKOD

$11,224.80
$14,031.00
Buy now
In stock
kW
6
Frequency
60 Hz
Fuel
Diesel
Cylinder
3
Controller
ADC IId Advanced Digital Control
Width
448 mm (17.65 in.)
Height
536 mm (21.12 in.)
Length
743 mm (29.26 in.)
Weight, dry
181 kg (398 lbs)
Weight, wet
185 kg (407 lbs)

9EKOZD

$11,601.60
$14,502.00
Buy now
In stock
kW
9
Frequency
60 Hz
Fuel
Diesel
Cylinder
3
Controller
ADC IId Advanced Digital Control
Width
449 mm (17.68 in.)
Height
536 mm (21.12 in.)
Length
827 mm (32.58 in.)
Weight
207 kg (456 lbs)
dry
211 kg (465 lbs)

11EKOZD

$12,199.00
$16,304.00
Buy now
In stock
kW
11
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
ADC IId Advanced Digital Control
Width
449 mm (17.68 in.)
Height
536 mm (21.12 in.)
Length
922mm (36.32 in.)
Weight
235 kg (517 lbs)
dry
241 kg (532 lbs)

14EKOZD

$16,446.40
$20,558.00
Buy now
In stock
kW
14
Frequency
60 Hz
Fuel
Diesel
Cylinder
3
Controller
Decision-Maker®3500 Controller
Width
580 mm (22.83 in.)
Height
695 mm (27.36 in.)
Length
984 mm (38.76 in.)
Weight
355 kg (782 lbs)
dry
368 kg (812 lbs)

16EKOZD

$16,912.80
$21,141.00
Buy now
In stock
kW
16
Frequency
60 Hz
Fuel
Diesel
Cylinder
3
Controller
Decision-Maker® 3500 Controller
Width
580 mm (22.83 in.)
Height
695 mm (27.36 in.)
Length
1003 mm (39.49 in.)
Weight
363 kg (800 lbs)
dry
376 kg (830 lbs)

21EKOZD

$17,845.60
$22,307.00
Buy now
In stock
kW
21
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
Decision-Maker® 3500 Controller
Width
577.5 mm (22.74 in.)
Height
694 mm (27.31 in.)
Length
1121 mm (44.13 in.)
Weight
422 kg (930 lbs)
dry
440 kg (970 lbs)

24EKOZD

$20,222.40
$25,278.00
Buy now
In stock
kW
24
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
Decision-Maker® 3500 Controller
Width
577.5 mm (22.74 in.)
Height
694 mm (27.31 in.)
Length
1138 mm (44.80 in.)
Weight
431 kg (950 lbs)
dry
449 kg (990 lbs)

32EKOZD

$26,207.20
$32,759.00
Buy now
Pre-order
kW
32
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
Decision-Maker® 3500 Controller
Width
643 mm (25.33 in.)
Height
733 mm (28.86 in.)
Length
1222 mm (48.13 in.)
Weight
514 kg (1134 lbs)
dry
531 kg (1170 lbs)

40EKOZD

$28,283.20
$35,354.00
Buy now
Pre-order
kW
40
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
Decision-Maker® 3500 Controller
Width
643 mm (25.33 in.)
Height
733 mm (28.86 in.)
Length
1274 mm (50.17 in.)
Weight
551 kg (1214 lbs)
dry
567 kg (1250 lbs)
