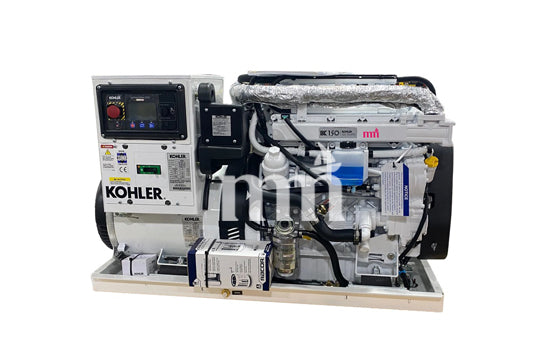

Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield

Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield
Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield
Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield
Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield
20% OFF
SALE
BEST SELLER
Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield
Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield
Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield
Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield
$16,912.80
$21,141.00 Save $4,228.20
* DUE TO SIZE AND WEIGHT, ALL GENERATORS HAVE A SHIPPING FEE. AN MMARINE REPRESENTATIVE WILL BE HAPPY TO ASSIST YOU WITH A SHIPPING ESTIMATE PRIOR TO PURCHASE.
Low in stock
Pre-order
Discontinued
In stock
Out of stock
Power Options
Notify me When Available
You will receive an email when the product is available.

Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield

SKU 16EKOZD
Product type Marine Generators
List price $21,141.00
Sale price
$16,912.80
Date Created 21 / 07 / 2024
Kohler 16kW - Marine Diesel Generator 16EKOZD, 12v, 60Hz, without Sound Shield

Product details

Kohlers 16EKOZD Marine Diesel Generator is an excellent option for marine applications, offering up to 12v of dependable output in a single-phase, 60Hz package.



  • Frequency 60 Hz
  • kW 16
  • Controller Decision-Maker® 3500 Controller
  • Fuel Type Diesel
  • Alternator Type 4-pole, rotating-field
  • Engine Manufacturer Kohler


Engine features:

  • Heavy-duty construction
  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary
  • Diesel fueled
  • Three cylinders
  • Four cycle
  • Electric fuel lift pump
  • Lifting eye
Generator features:
  • Remote start 12-pin connector
  • Class H insulation
  • Single phase and three phase models available
  • Voltage regulation of ±1.0%
  • Radio suppression
  • Outstanding motor-starting capability
  • Directly connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.



Engine Features

  • Diesel fueled
  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards
  • Three cylinder
  • Four cycle
  • Closed cooling system
  • Heat exchanger
  • Electric fuel lift pump
  • Lifting eye

Generator Features

  • Class H insulation
  • Multivoltage adjustability
  • Voltage regulation of 1.0%
  • Radio suppression

Decision-Maker 3500 Paralleling Controller

  • A graphical display and pushbutton/rotary selector dial provide easy, local data access
  • Measurements are selectable in metric or English units
  • The controller supports Modbus protocol with serial bus (RS-485) or Ethernet networks Modbus is a registered trademark of Schneider Electric
  • Scrolling display shows critical data at a glance
  • Graphical display of power metering (kW, kVA, V, I, PF, and VAR)
  • Integrated hybrid voltage regulator
  • Built-in alternator thermal overload protection

Product details

Kohlers 16EKOZD Marine Diesel Generator is an excellent option for marine applications, offering up to 12v of dependable output in a single-phase, 60Hz package.



  • Frequency 60 Hz
  • kW 16
  • Controller Decision-Maker® 3500 Controller
  • Fuel Type Diesel
  • Alternator Type 4-pole, rotating-field
  • Engine Manufacturer Kohler


Engine features:

  • Heavy-duty construction
  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary
  • Diesel fueled
  • Three cylinders
  • Four cycle
  • Electric fuel lift pump
  • Lifting eye
Generator features:
  • Remote start 12-pin connector
  • Class H insulation
  • Single phase and three phase models available
  • Voltage regulation of ±1.0%
  • Radio suppression
  • Outstanding motor-starting capability
  • Directly connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.



Technical Specification

Engine Features

  • Diesel fueled
  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards
  • Three cylinder
  • Four cycle
  • Closed cooling system
  • Heat exchanger
  • Electric fuel lift pump
  • Lifting eye

Generator Features

  • Class H insulation
  • Multivoltage adjustability
  • Voltage regulation of 1.0%
  • Radio suppression

Decision-Maker 3500 Paralleling Controller

  • A graphical display and pushbutton/rotary selector dial provide easy, local data access
  • Measurements are selectable in metric or English units
  • The controller supports Modbus protocol with serial bus (RS-485) or Ethernet networks Modbus is a registered trademark of Schneider Electric
  • Scrolling display shows critical data at a glance
  • Graphical display of power metering (kW, kVA, V, I, PF, and VAR)
  • Integrated hybrid voltage regulator
  • Built-in alternator thermal overload protection

Dimensional Drawing

Dimensional Drawing


Generator without sound shield

Width: 580 mm (22.83 in.)

Height: 695 mm (27.36 in.)

Length: 1003 mm (39.49 in.)

Weight, dry: 363 kg (800 lbs)

Weight, wet: 376 kg (830 lbs)




Technical documents

Print friendly

Download this print friendly page


Compare with similar items

kW
Frequency
Fuel
Cylinder
Controller
Width
Height
Length
Weight
dry

6EKOD

$11,224.80
$14,031.00
Buy now
In stock
kW
6
Frequency
60 Hz
Fuel
Diesel
Cylinder
3
Controller
ADC IId Advanced Digital Control
Width
448 mm (17.65 in.)
Height
536 mm (21.12 in.)
Length
743 mm (29.26 in.)
Weight, dry
181 kg (398 lbs)
Weight, wet
185 kg (407 lbs)

9EKOZD

$11,601.60
$14,502.00
Buy now
In stock
kW
9
Frequency
60 Hz
Fuel
Diesel
Cylinder
3
Controller
ADC IId Advanced Digital Control
Width
449 mm (17.68 in.)
Height
536 mm (21.12 in.)
Length
827 mm (32.58 in.)
Weight
207 kg (456 lbs)
dry
211 kg (465 lbs)

11EKOZD

$13,043.20
$16,304.00
Buy now
In stock
kW
11
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
ADC IId Advanced Digital Control
Width
449 mm (17.68 in.)
Height
536 mm (21.12 in.)
Length
922mm (36.32 in.)
Weight
235 kg (517 lbs)
dry
241 kg (532 lbs)

14EKOZD

$16,446.40
$20,558.00
Buy now
In stock
kW
14
Frequency
60 Hz
Fuel
Diesel
Cylinder
3
Controller
Decision-Maker®3500 Controller
Width
580 mm (22.83 in.)
Height
695 mm (27.36 in.)
Length
984 mm (38.76 in.)
Weight
355 kg (782 lbs)
dry
368 kg (812 lbs)

16EKOZD

$16,912.80
$21,141.00
Buy now
In stock
kW
16
Frequency
60 Hz
Fuel
Diesel
Cylinder
3
Controller
Decision-Maker® 3500 Controller
Width
580 mm (22.83 in.)
Height
695 mm (27.36 in.)
Length
1003 mm (39.49 in.)
Weight
363 kg (800 lbs)
dry
376 kg (830 lbs)

21EKOZD

$17,845.60
$22,307.00
Buy now
In stock
kW
21
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
Decision-Maker® 3500 Controller
Width
577.5 mm (22.74 in.)
Height
694 mm (27.31 in.)
Length
1121 mm (44.13 in.)
Weight
422 kg (930 lbs)
dry
440 kg (970 lbs)

24EKOZD

$20,222.40
$25,278.00
Buy now
In stock
kW
24
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
Decision-Maker® 3500 Controller
Width
577.5 mm (22.74 in.)
Height
694 mm (27.31 in.)
Length
1138 mm (44.80 in.)
Weight
431 kg (950 lbs)
dry
449 kg (990 lbs)

32EKOZD

$26,207.20
$32,759.00
Buy now
Pre-order
kW
32
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
Decision-Maker® 3500 Controller
Width
643 mm (25.33 in.)
Height
733 mm (28.86 in.)
Length
1222 mm (48.13 in.)
Weight
514 kg (1134 lbs)
dry
531 kg (1170 lbs)

40EKOZD

$28,283.20
$35,354.00
Buy now
Pre-order
kW
40
Frequency
60 Hz
Fuel
Diesel
Cylinder
4
Controller
Decision-Maker® 3500 Controller
Width
643 mm (25.33 in.)
Height
733 mm (28.86 in.)
Length
1274 mm (50.17 in.)
Weight
551 kg (1214 lbs)
dry
567 kg (1250 lbs)
