Lenco 12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch

Lenco 12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch
Lenco 12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch
SKU: N/A
$0.00
Save

🚚 FREE SHIPPING INCLUDED 🚚

Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

Lenco 12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch

SKU N/A
Product type Trim Tabs
List price
Sale price
$0.00
Date Created 17 / 09 / 2026
Lenco 12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch

Product details

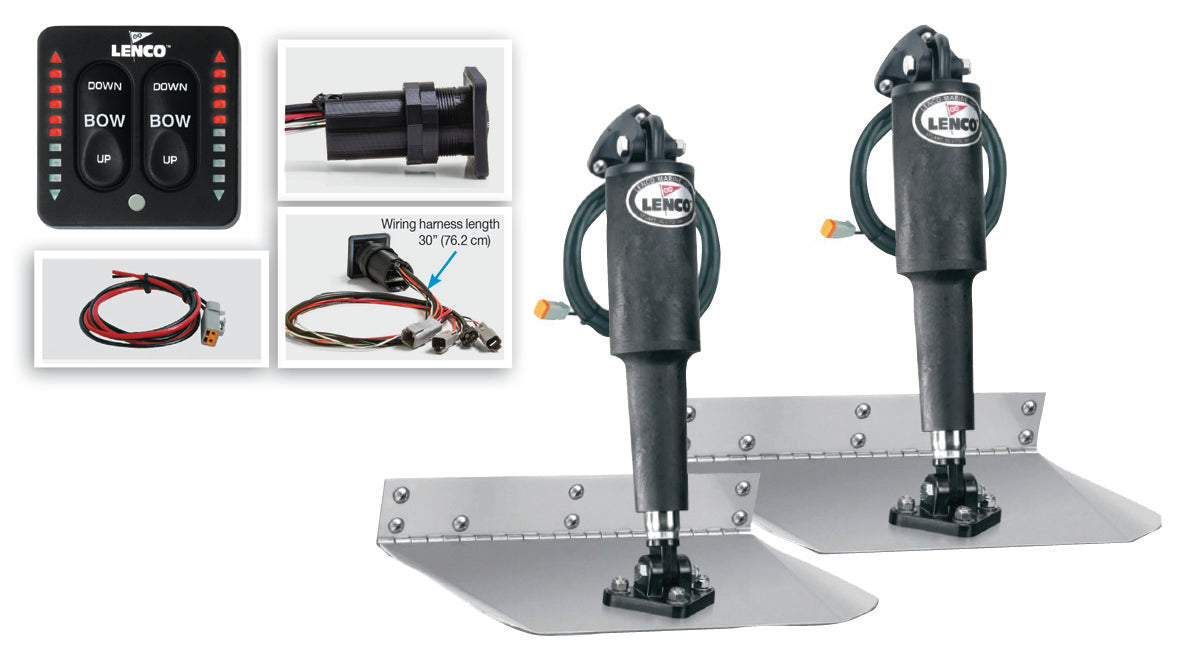

Lenco 12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch

Model: 15109-103


  • Instant Response: Electric ball-screw actuators provide immediate deflection and hold trim angle securely without hydraulic lag or bleed-off.
  • Integrated LED Helm Switch: Built-in display shows real-time plane positions with integrated photo-eye dimming for optimal visibility in bright sun or night operation.
  • Auto-Retract Function: Tabs automatically return to fully retracted position when ignition power is switched off, protecting actuators during trailering and lift storage.
  • Durable Construction: Heavy-duty 12-gauge 304 stainless steel trim plates with 5/8" flared trailing edges ensure maximum lift and resistance to corrosion.
  • Watertight Plug-and-Play Wiring: Pre-terminated waterproof Deutsch connectors eliminate hard-splice failures at the transom.

Factory-complete 12V electric trim tab system engineered for 17 to 30 vessels. Features 12-gauge 304 stainless steel blades, high-torque submersible electric actuators, and an integrated LED tactile switch offering real-time blade positioning and auto-retract functionality.

The Lenco 15109-103 Standard Trim Tab Kit delivers immediate helm control to smooth out choppy seas, correct listing, eliminate porpoising, and improve overall fuel economy. Powered by oil-free, electric ball-screw actuators, this system eliminates hydraulic pumps, fluids, and external lines for a clean, maintenance-free installation.

The included all-in-one tactile switch integrates both dual actuator controls and precision LED indicators into a compact helm footprint, automatically retracting both planes to the upright position when engine ignition is turned off.

Specifications


Tab Plane Dimensions 12" Width (Hinge) × 12" Length (Reach)
Operating Voltage 12V DC
Recommended Vessel Length 17 — 30 (5.2 m — 9.1 m)
Minimum Transom Height 14" (35.6 cm)
Blade Material 12-Gauge 304 Marine-Grade Stainless Steel
Actuator Type 12V Submersible Ball-Screw Actuators
Actuator Leads 6 ft. factory leads with Deutsch connectors
Switch Style Integrated Tactile Keypad with Dual LED Indicators
Switch Cut-Out Size 2" diameter round helm cut-out


Whats in the Box:

  • (2) 12" × 12" 12-gauge 304 stainless steel trim tab planes
  • (2) 12V Standard electric actuators with 6 waterproof Deutsch pigtails
  • (2) 20 Actuator extension wiring harnesses
  • (1) Integrated tactile LED indicator switch with built-in control box & 36" power harness
  • (1) Stainless steel transom mounting hardware pack
  • (1) Installation and wiring manual

Product details

Lenco 12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch

Model: 15109-103


  • Instant Response: Electric ball-screw actuators provide immediate deflection and hold trim angle securely without hydraulic lag or bleed-off.
  • Integrated LED Helm Switch: Built-in display shows real-time plane positions with integrated photo-eye dimming for optimal visibility in bright sun or night operation.
  • Auto-Retract Function: Tabs automatically return to fully retracted position when ignition power is switched off, protecting actuators during trailering and lift storage.
  • Durable Construction: Heavy-duty 12-gauge 304 stainless steel trim plates with 5/8" flared trailing edges ensure maximum lift and resistance to corrosion.
  • Watertight Plug-and-Play Wiring: Pre-terminated waterproof Deutsch connectors eliminate hard-splice failures at the transom.

Factory-complete 12V electric trim tab system engineered for 17 to 30 vessels. Features 12-gauge 304 stainless steel blades, high-torque submersible electric actuators, and an integrated LED tactile switch offering real-time blade positioning and auto-retract functionality.

The Lenco 15109-103 Standard Trim Tab Kit delivers immediate helm control to smooth out choppy seas, correct listing, eliminate porpoising, and improve overall fuel economy. Powered by oil-free, electric ball-screw actuators, this system eliminates hydraulic pumps, fluids, and external lines for a clean, maintenance-free installation.

The included all-in-one tactile switch integrates both dual actuator controls and precision LED indicators into a compact helm footprint, automatically retracting both planes to the upright position when engine ignition is turned off.

Specifications


Tab Plane Dimensions 12" Width (Hinge) × 12" Length (Reach)
Operating Voltage 12V DC
Recommended Vessel Length 17 — 30 (5.2 m — 9.1 m)
Minimum Transom Height 14" (35.6 cm)
Blade Material 12-Gauge 304 Marine-Grade Stainless Steel
Actuator Type 12V Submersible Ball-Screw Actuators
Actuator Leads 6 ft. factory leads with Deutsch connectors
Switch Style Integrated Tactile Keypad with Dual LED Indicators
Switch Cut-Out Size 2" diameter round helm cut-out


Whats in the Box:

  • (2) 12" × 12" 12-gauge 304 stainless steel trim tab planes
  • (2) 12V Standard electric actuators with 6 waterproof Deutsch pigtails
  • (2) 20 Actuator extension wiring harnesses
  • (1) Integrated tactile LED indicator switch with built-in control box & 36" power harness
  • (1) Stainless steel transom mounting hardware pack
  • (1) Installation and wiring manual
