JL Audio XDM Marine Amplifier 8-Channel 800 Watt 12v

JL Audio XDM Marine Amplifier 8-Channel 800 Watt 12v
JL Audio XDM Marine Amplifier 8-Channel 800 Watt 12v
SKU: JLA0100311900
$1,049.99
Save

🚚 FREE SHIPPING INCLUDED 🚚

Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

JL Audio XDM Marine Amplifier 8-Channel 800 Watt 12v

SKU JLA0100311900
Product type Audio/Video
List price
Sale price
$1,049.99
Date Created 01 / 12 / 2024
JL Audio XDM Marine Amplifier 8-Channel 800 Watt 12v

Product details

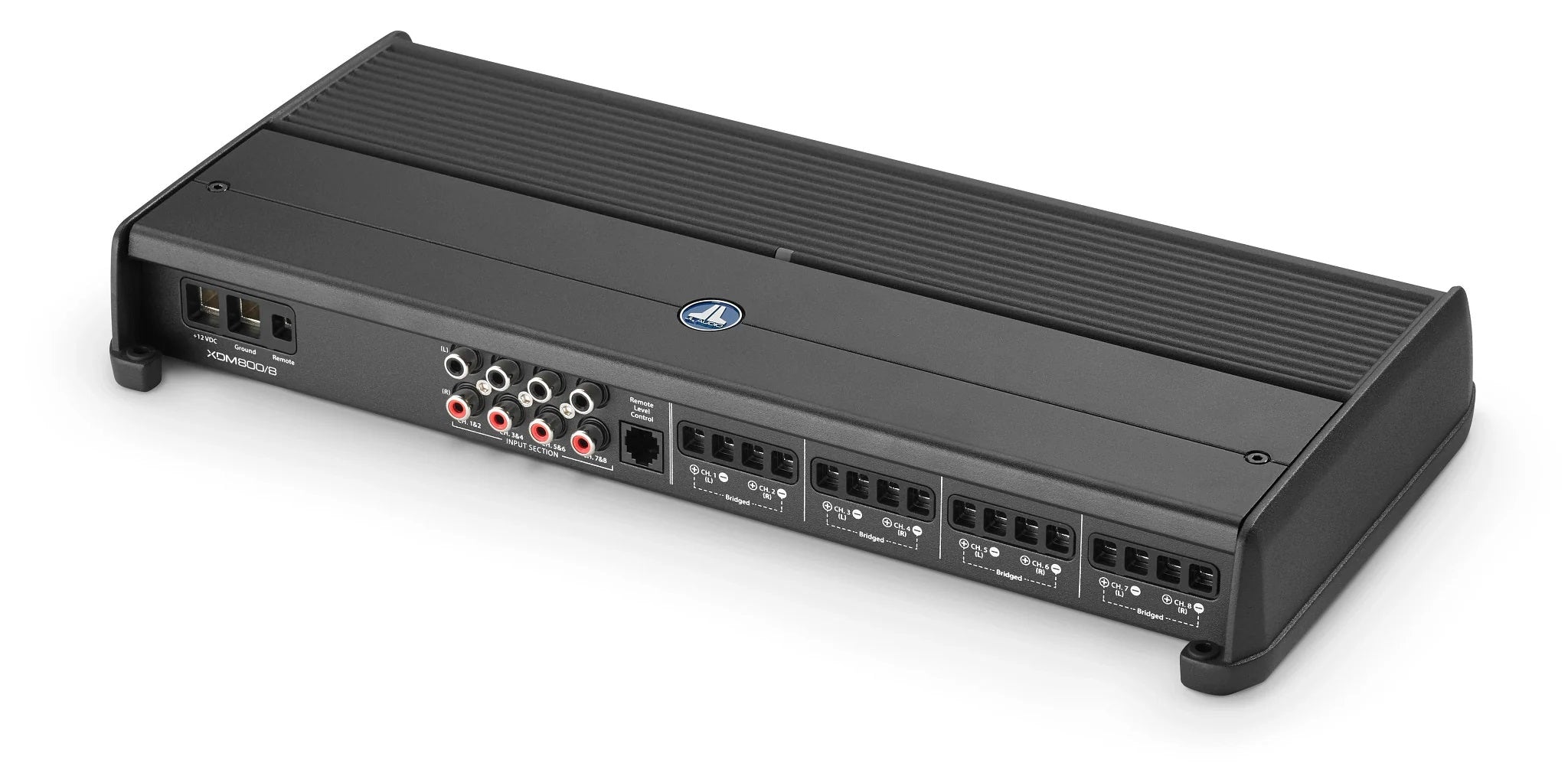

JL Audio 8 Ch. Class D Full-Range Car/Marine Amplifier, 800 W

Model: XDM800/8
  • Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8
  • Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4?
  • Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4?, plus two 4? subwoofers with 200 W each
  • Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x 2 @ 4?, plus four 4? speakers with 75 W each
  • Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4? + rear speakers with 75 W x 2
  • Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4?, plus two 4? subwoofers with 200W each

The ultra-versatile XDM800/8 delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100 watts to each of its channels @ 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM800/8 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM800/8 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the drivers seat or cockpit.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications
Rated Continuous (RMS) Power @ 14.4 V
@ 4 ? 75 W RMS x 8
@ 2 ? 100 W RMS x 8
Bridged @ 4? 200 W RMS x 4
Rated Continuous (RMS) Power @ 12.5 V
@ 4 ? 60 W RMS x 8
@ 2 ? 90 W RMS x 8
Bridged @ 4? 180 W RMS x 4
General Specifications
Frequency Response 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ? >150 / 50 Hz
Damping Factor @ 2 ? >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 ? per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s) Low-Pass or High-Pass
Filter Slope(s) 12 dB/octave
Filter Frequency Range 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeat Function Yes
Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes 2 or 4 or All Channels
Channel Input Mode Switch Yes (2/4/6/8 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A

Product details

JL Audio 8 Ch. Class D Full-Range Car/Marine Amplifier, 800 W

Model: XDM800/8
  • Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8
  • Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4?
  • Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4?, plus two 4? subwoofers with 200 W each
  • Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x 2 @ 4?, plus four 4? speakers with 75 W each
  • Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4? + rear speakers with 75 W x 2
  • Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4?, plus two 4? subwoofers with 200W each

The ultra-versatile XDM800/8 delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100 watts to each of its channels @ 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM800/8 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM800/8 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the drivers seat or cockpit.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications
Rated Continuous (RMS) Power @ 14.4 V
@ 4 ? 75 W RMS x 8
@ 2 ? 100 W RMS x 8
Bridged @ 4? 200 W RMS x 4
Rated Continuous (RMS) Power @ 12.5 V
@ 4 ? 60 W RMS x 8
@ 2 ? 90 W RMS x 8
Bridged @ 4? 180 W RMS x 4
General Specifications
Frequency Response 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ? >150 / 50 Hz
Damping Factor @ 2 ? >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 ? per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s) Low-Pass or High-Pass
Filter Slope(s) 12 dB/octave
Filter Frequency Range 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeat Function Yes
Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes 2 or 4 or All Channels
Channel Input Mode Switch Yes (2/4/6/8 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A
