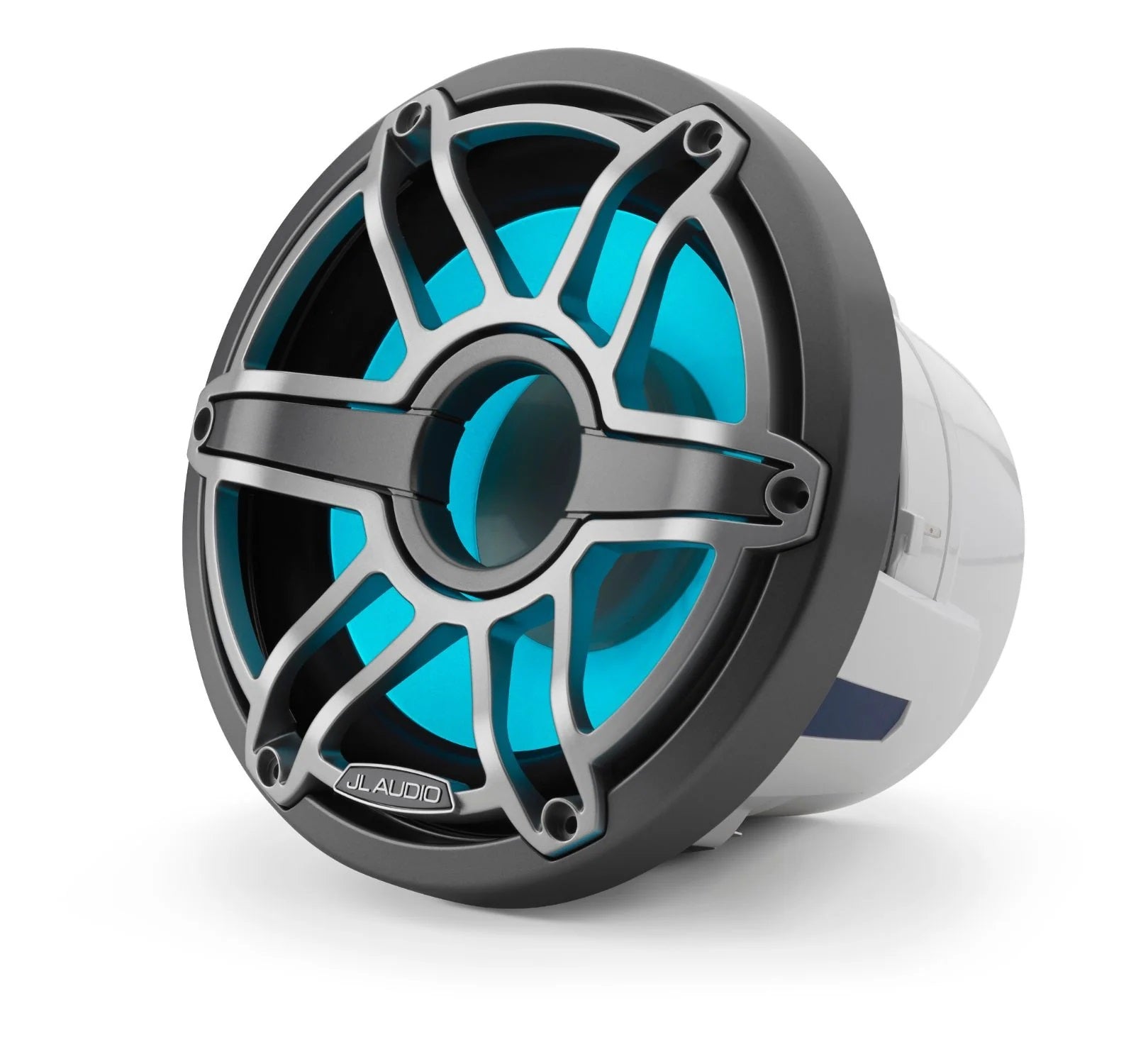

JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED

JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle,  RGB LED
JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle,  RGB LED
SKU: JLA0100308200
$529.99
$409.99 Save

🚚 FREE SHIPPING INCLUDED 🚚

Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED

SKU JLA0100308200
Product type Audio/Video
List price $409.99
Sale price
$529.99
Date Created 26 / 12 / 2024
JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle,  RGB LED

Product details

JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED

93620

Model: M6-8IB-S-GmTi-i-4

M6 8-inch Marine Subwoofer with Transflective™ LED Lighting for Infinite-Baffle Use (200 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boats audio system. This model also features the added visual impact of JL Audio’s Transflective™ RGB LED lighting, a patent-pending technology that emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.

The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l). If you prefer to use a dedicated enclosure, refer to one of the suggested designs located in the Specifications section for optimum performance.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications
General Specifications
Continuous Power Handling (RMS) 200 W
Nominal Impedance (Znom) 4 ohms
Physical Specifications
Nominal Diameter 8.0 in / 200 mm
Overall Diameter 8.80 in / 224 mm
Bolt Hole Circle Diameter 7.97 in / 202 mm
Frontal Grille Protrusion 1.45 in / 37 mm
Mounting Hole Diameter 7.375 in / 187 mm
Mounting Depth 5.00 in / 127 mm
Driver Displacement 0.033 cu ft / 0.93 L
Net Weight 8.70 lb / 3.90 kg
Parameters
Free Air Resonance (Fs) 54.92 Hz
Electrical "Q" (Qes) 0.852
Mechanical "Q" (Qms) 10.314
Total Speaker "Q" (Qts) 0.787
Equivalent Compliance (Vas) 0.54 cu ft / 15.29 L
One-Way Linear Excursion (Xmax)* 0.53 in / 14 mm
Reference Efficiency (no) 0.28%
Efficiency (1 W / 1 m)** 86.7 dB SPL
Effective Piston Area (Sd) 35.15 sq in / 0.0227 sq m
DC Resistance (Re) 2.993 ohms
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 2.00 cu ft / 56.6 L
External Width 16 in / 406 mm
External Height 16 in / 406 mm
External Depth 18.25 in / 464 mm
F3 51.78 Hz
Fc 61.89 Hz
Qtc 0.8869
Ported Enclosure Specifications
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.50 cu ft / 42.5 L
External Width 16 in / 406 mm
External Height 16 in / 406 mm
External Depth 15.125 in / 384 mm
Internal Port Diameter 4 in / 102 mm
Port Length 13.50 in / 343 mm
13.50 in / 343 mm 37 Hz
F3 31.26 Hz

Product details

JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED

93620

Model: M6-8IB-S-GmTi-i-4

M6 8-inch Marine Subwoofer with Transflective™ LED Lighting for Infinite-Baffle Use (200 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boats audio system. This model also features the added visual impact of JL Audio’s Transflective™ RGB LED lighting, a patent-pending technology that emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.

The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l). If you prefer to use a dedicated enclosure, refer to one of the suggested designs located in the Specifications section for optimum performance.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications
General Specifications
Continuous Power Handling (RMS) 200 W
Nominal Impedance (Znom) 4 ohms
Physical Specifications
Nominal Diameter 8.0 in / 200 mm
Overall Diameter 8.80 in / 224 mm
Bolt Hole Circle Diameter 7.97 in / 202 mm
Frontal Grille Protrusion 1.45 in / 37 mm
Mounting Hole Diameter 7.375 in / 187 mm
Mounting Depth 5.00 in / 127 mm
Driver Displacement 0.033 cu ft / 0.93 L
Net Weight 8.70 lb / 3.90 kg
Parameters
Free Air Resonance (Fs) 54.92 Hz
Electrical "Q" (Qes) 0.852
Mechanical "Q" (Qms) 10.314
Total Speaker "Q" (Qts) 0.787
Equivalent Compliance (Vas) 0.54 cu ft / 15.29 L
One-Way Linear Excursion (Xmax)* 0.53 in / 14 mm
Reference Efficiency (no) 0.28%
Efficiency (1 W / 1 m)** 86.7 dB SPL
Effective Piston Area (Sd) 35.15 sq in / 0.0227 sq m
DC Resistance (Re) 2.993 ohms
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 2.00 cu ft / 56.6 L
External Width 16 in / 406 mm
External Height 16 in / 406 mm
External Depth 18.25 in / 464 mm
F3 51.78 Hz
Fc 61.89 Hz
Qtc 0.8869
Ported Enclosure Specifications
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.50 cu ft / 42.5 L
External Width 16 in / 406 mm
External Height 16 in / 406 mm
External Depth 15.125 in / 384 mm
Internal Port Diameter 4 in / 102 mm
Port Length 13.50 in / 343 mm
13.50 in / 343 mm 37 Hz
F3 31.26 Hz
