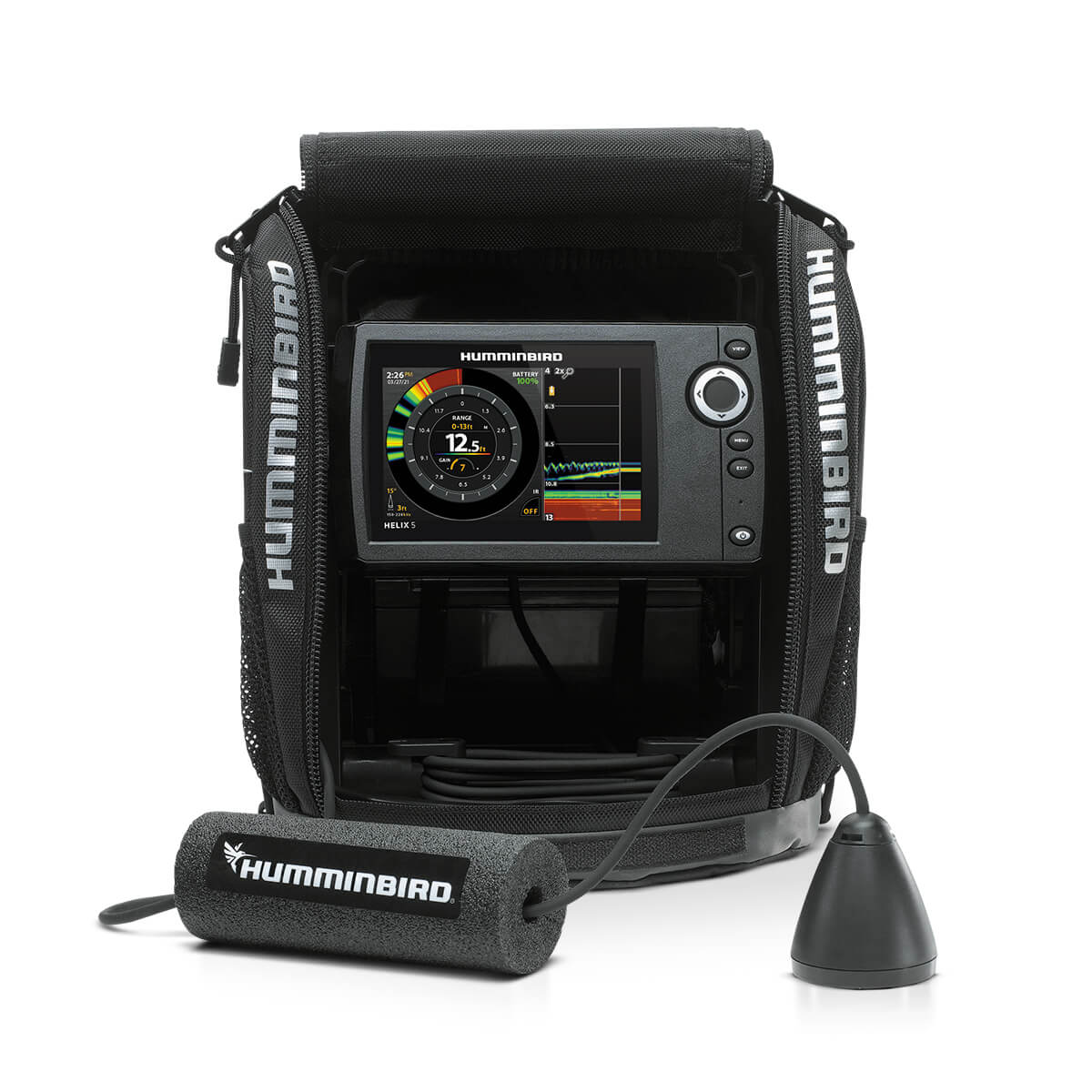

Humminbird HELIX5 CHIRP G3 Ice Sonar System

Humminbird HELIX5 CHIRP G3 Ice Sonar System
Humminbird HELIX5 CHIRP G3 Ice Sonar System
SKU: HUM4117201
$549.99
Save

🚚 FREE SHIPPING INCLUDED 🚚

Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

Humminbird HELIX5 CHIRP G3 Ice Sonar System

SKU HUM4117201
Product type Fishfinders
List price
Sale price
$549.99
Date Created 26 / 10 / 2025
Humminbird HELIX5 CHIRP G3 Ice Sonar System

Product details

Humminbird ICE HELIX 5 CHIRP G3

Model: 411720-1
  • Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
  • CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
  • Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view.
  • Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, youll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.
  • Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
  • Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
  • Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and youll be ready to hit the water even after the ICE melts.

The ICE HELIX 5 CHIRP G3 gives you a deeper understanding of whats below the ICE, with exclusive features you wont find on any other ICE sonar unit. Utilize crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode and unprecedented viewing options specifically for the ICE angler. Youll watch it all take shape on a full color, 5" HD LCD display.

Specifications
Display Size - Diagonal 5"
Display Pixel Matrix 800H x 480V
Sonar-Standard Dual Spectrum CHIRP
Sonar-Coverage 15° & 21° @ -3dB
Sonar-Optional 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported 50/80/200 kHz
Depth-Sonar 400 ft
Interface Keypad Control
Features Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable
Memory Card Slot None
Power Draw 615 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Output RMS 500 Watts
Screen Snap Shot Not Supported
Sonar Recording Not Supported
Mount-Standard Portable
Transducer Mount Location Portable
GPS Chartplotting Not Supported
GPS Trackplotting Not Supported
LakeMaster Compatibility No
Coast Master Compatibility No
Navionics Gold/HotMaps Compatibility No
Navionics Platinum + Compatibility No
Platinum Compatibility No
Heading Sensor GPS Compatibility No
Upgradable Software No
View Preset Keys No
X-Press Menu System Yes
Custom View Selections Yes
Custom Digital Readout Yes
Speed Not Supported
Temperature Not Supported
Transducer Included XI 9 1521

Whats in the Box:
  • ICE HELIX 5 CHIRP G3 fish finder
  • Dual Spectrum CHIRP ICE transducer - XI 9 1521
  • 9Ah battery and Charger
  • ICE shuttle
  • Hardware
  • Power cable
  • Portable bag.

Product details

Humminbird ICE HELIX 5 CHIRP G3

Model: 411720-1
  • Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
  • CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
  • Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view.
  • Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, youll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.
  • Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
  • Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
  • Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and youll be ready to hit the water even after the ICE melts.

The ICE HELIX 5 CHIRP G3 gives you a deeper understanding of whats below the ICE, with exclusive features you wont find on any other ICE sonar unit. Utilize crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode and unprecedented viewing options specifically for the ICE angler. Youll watch it all take shape on a full color, 5" HD LCD display.

Specifications
Display Size - Diagonal 5"
Display Pixel Matrix 800H x 480V
Sonar-Standard Dual Spectrum CHIRP
Sonar-Coverage 15° & 21° @ -3dB
Sonar-Optional 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported 50/80/200 kHz
Depth-Sonar 400 ft
Interface Keypad Control
Features Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable
Memory Card Slot None
Power Draw 615 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Output RMS 500 Watts
Screen Snap Shot Not Supported
Sonar Recording Not Supported
Mount-Standard Portable
Transducer Mount Location Portable
GPS Chartplotting Not Supported
GPS Trackplotting Not Supported
LakeMaster Compatibility No
Coast Master Compatibility No
Navionics Gold/HotMaps Compatibility No
Navionics Platinum + Compatibility No
Platinum Compatibility No
Heading Sensor GPS Compatibility No
Upgradable Software No
View Preset Keys No
X-Press Menu System Yes
Custom View Selections Yes
Custom Digital Readout Yes
Speed Not Supported
Temperature Not Supported
Transducer Included XI 9 1521

Whats in the Box:
  • ICE HELIX 5 CHIRP G3 fish finder
  • Dual Spectrum CHIRP ICE transducer - XI 9 1521
  • 9Ah battery and Charger
  • ICE shuttle
  • Hardware
  • Power cable
  • Portable bag.
