Quick Gyro MC² X5 LV AC - Antiroll Stabilizer - 110V

Quick Gyro MC² X5 LV AC - Antiroll Stabilizer - 110V
Quick Gyro MC² X5 LV AC - Antiroll Stabilizer - 110V
$0.00
* DUE TO SIZE AND WEIGHT, ALL GYROS HAVE A SHIPPING FEE. AN MMARINE REPRESENTATIVE WILL BE HAPPY TO ASSIST YOU WITH A SHIPPING ESTIMATE PRIOR TO PURCHASE.
Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

Quick Gyro MC² X5 LV AC - Antiroll Stabilizer - 110V

SKU MC2X5LVAC
Product type Stabilizers
List price
Sale price
$0.00
Date Created 26 / 02 / 2024
QA code

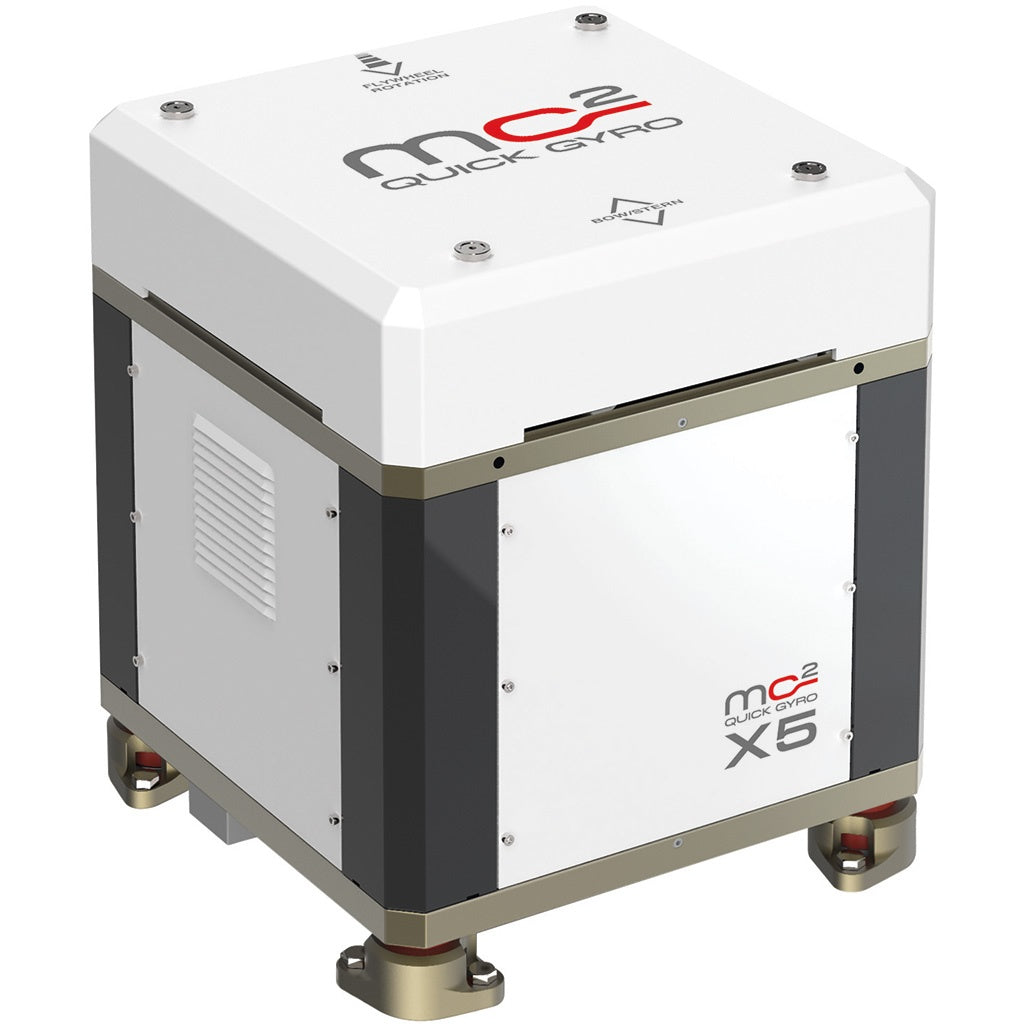

Quick Gyro MC² X5 LV AC - Antiroll Stabilizer - 110V

Product details

The latest in boat stabilizing technology
The MC²X series is the result of careful research, and a patented revolutionary vertically spinning mass that is air cooled.

The Quick research and development laboratories have introduced technical solutions that guarantee simpler operation and reduced maintenance, in a smaller machine.

Features
  • Market leading anti-roll output
  • Simple air cooled operation
  • Small compact design
  • Reduced maintenance costs
  • No cooling pumps to service
  • Faster spool up time
  • Easy switch off and walk away spool down
  • Touch panel remote control with instant stand-by mode Gyros that work in any sea conditions and at any boat speed
  • Worldwide 2 year 2000hr warranty
  • Mobile app to measure gyro performance

MC²X Quick gyro stabilizers -  For boats up to 250 tons
The MC²X Quick Gyro Stabilizers offer excellent performance with the boat at anchor or underway. The outstanding performance of the MC²X gyro stabilizers sets them apart from other gyro stabilizers on the market. The patented vertical spinning mass in the MC²X makes the units more compact, simpler to install and means that any maintenance work can be performed on board, even with the boat in the water.

The revolutionary vertically spinning mass generates less heat and as a result, the MC²X gyro stabilizers do not require water cooling systems. This means no need to install and maintain pumps or anodes. Maintenance is limited to periodic checks.

MC²X Remote control and mobile app convenience and control
The MC²X Quick Gyro Stabilizers are equipped with a remote touch panel to control the operation of the stabilizer, from activation (ON / OFF) to monitoring of performance and maintenance control. With MC²X you can record stabilization performance via the MC² Mobile app, which can be viewed on both iOS and Android systems.

Technical Specification

MODEL
MC² X5 LV AC
Rated speed (1)
4800 RPM
Angular momentum (2)
1722 N·m·s
Output torque (3)
5340 N·m
Spool-up time to rated RPM
18 min
Spool-up time to stabilization 14 min
Power absorbed 1400 W max
AC Input voltage 90-120 Vac
Frequency 50-60 Hz
Noise output < 70 dB
Ambient air temperature da-10°C a +55°C
Weight (4) 200 kg (440 lb)


(1) Rated speed: flywheel speed (RPM: Revolutions per minute).

(2) Angular momentum: it quantifies the torque that is necessary to balance the system in the time unit (Newtons meter second).

(3) Output torque: torque generated by the rotor at rated speed (Newtons per meter).

(4) Weight with control unit, excluding optional base plate accessory, standard or custom.

Product details

The latest in boat stabilizing technology
The MC²X series is the result of careful research, and a patented revolutionary vertically spinning mass that is air cooled.

The Quick research and development laboratories have introduced technical solutions that guarantee simpler operation and reduced maintenance, in a smaller machine.

Features
  • Market leading anti-roll output
  • Simple air cooled operation
  • Small compact design
  • Reduced maintenance costs
  • No cooling pumps to service
  • Faster spool up time
  • Easy switch off and walk away spool down
  • Touch panel remote control with instant stand-by mode Gyros that work in any sea conditions and at any boat speed
  • Worldwide 2 year 2000hr warranty
  • Mobile app to measure gyro performance

MC²X Quick gyro stabilizers -  For boats up to 250 tons
The MC²X Quick Gyro Stabilizers offer excellent performance with the boat at anchor or underway. The outstanding performance of the MC²X gyro stabilizers sets them apart from other gyro stabilizers on the market. The patented vertical spinning mass in the MC²X makes the units more compact, simpler to install and means that any maintenance work can be performed on board, even with the boat in the water.

The revolutionary vertically spinning mass generates less heat and as a result, the MC²X gyro stabilizers do not require water cooling systems. This means no need to install and maintain pumps or anodes. Maintenance is limited to periodic checks.

MC²X Remote control and mobile app convenience and control
The MC²X Quick Gyro Stabilizers are equipped with a remote touch panel to control the operation of the stabilizer, from activation (ON / OFF) to monitoring of performance and maintenance control. With MC²X you can record stabilization performance via the MC² Mobile app, which can be viewed on both iOS and Android systems.

Technical Specification

Technical Specification

MODEL
MC² X5 LV AC
Rated speed (1)
4800 RPM
Angular momentum (2)
1722 N·m·s
Output torque (3)
5340 N·m
Spool-up time to rated RPM
18 min
Spool-up time to stabilization 14 min
Power absorbed 1400 W max
AC Input voltage 90-120 Vac
Frequency 50-60 Hz
Noise output < 70 dB
Ambient air temperature da-10°C a +55°C
Weight (4) 200 kg (440 lb)


(1) Rated speed: flywheel speed (RPM: Revolutions per minute).

(2) Angular momentum: it quantifies the torque that is necessary to balance the system in the time unit (Newtons meter second).

(3) Output torque: torque generated by the rotor at rated speed (Newtons per meter).

(4) Weight with control unit, excluding optional base plate accessory, standard or custom.

Dimensional Drawing

Dimensional Drawing

without base plate

Width: 474 mm (18.66 in.)

Height: 566 mm (22.28 in.)

Length: 474 mm (18.66 in.)

with base plate

Width: 480 mm (18.89 in.)

Height: 581 mm (22.87 in.)

Length: 480 mm (18.89 in.)


Without Base Plate


With Base Plate
