Kohler 5kW - Marine Diesel Generator 5EFKOD, 12v, 50Hz, 1 PH without Sound Shield
20%
OFF
SALE
$11,224.80
* DUE TO SIZE AND WEIGHT, ALL GENERATORS HAVE A SHIPPING FEE. AN MMARINE REPRESENTATIVE WILL BE HAPPY TO ASSIST YOU WITH A SHIPPING ESTIMATE PRIOR TO PURCHASE.

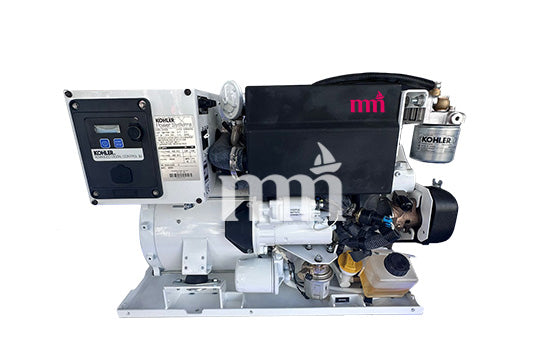

Kohler 5kW - Marine Diesel Generator 5EFKOD, 12v, 50Hz, 1 PH without Sound Shield
SKU
5EFKOD
Product type
Marine Generators
List price
$14,031.00
Sale price
$11,224.80
Date Created
02 / 05 / 2024
Product details
Kohlers 5EFKOD Marine Diesel Generator is a great choice for any maritime application. This single-phase, 50Hz generator delivers reliable power output of up to 12v. With its robust construction and reliable performance, the 5EFKOD is an ideal choice for powering your boat or yacht.
- Frequency 50 Hz
- kW 5
- Controller ADC IId Advanced Digital Control
- Fuel Type Diesel
- Alternator Type 4-pole, rotating-field
- Engine Manufacturer Kohler
Engine features:
- Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.
- Closed cooling system
- Heat exchanger
- Oil drain valve
- Remote start 12-pin connector
- Voltage regulation of ±1.0%
- Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
- Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
Engine Features
- Diesel fueled
- Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards
- Three cylinder
- Four cycle
- Closed cooling system
- Heat exchanger
- Lifting eye
Generator Features
- Remote start 12-pin connector
- Class H insulation
- Multivoltage adjustability
- Voltage regulation of 1.0%
- Radio suppression
ADC IId Advanced Digital Control Features
- Designed for today’s most sophisticated electronics
- Easy to read 12 x 2 LCD alpha-numeric display
- Compact, integrally mounted control
- Sealed connectors for maximum corrosion protection
- SAE J1939, SmartCraftt, NMEA 2000 selectable CANbus outputs
- Remote monitoring of fault conditions
- Push button dial for configuration and adjustment
- Programmed crank cycle
Product details
Kohlers 5EFKOD Marine Diesel Generator is a great choice for any maritime application. This single-phase, 50Hz generator delivers reliable power output of up to 12v. With its robust construction and reliable performance, the 5EFKOD is an ideal choice for powering your boat or yacht.
- Frequency 50 Hz
- kW 5
- Controller ADC IId Advanced Digital Control
- Fuel Type Diesel
- Alternator Type 4-pole, rotating-field
- Engine Manufacturer Kohler
Engine features:
- Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.
- Closed cooling system
- Heat exchanger
- Oil drain valve
- Remote start 12-pin connector
- Voltage regulation of ±1.0%
- Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
- Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
Technical Specification
Engine Features
- Diesel fueled
- Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards
- Three cylinder
- Four cycle
- Closed cooling system
- Heat exchanger
- Lifting eye
Generator Features
- Remote start 12-pin connector
- Class H insulation
- Multivoltage adjustability
- Voltage regulation of 1.0%
- Radio suppression
ADC IId Advanced Digital Control Features
- Designed for today’s most sophisticated electronics
- Easy to read 12 x 2 LCD alpha-numeric display
- Compact, integrally mounted control
- Sealed connectors for maximum corrosion protection
- SAE J1939, SmartCraftt, NMEA 2000 selectable CANbus outputs
- Remote monitoring of fault conditions
- Push button dial for configuration and adjustment
- Programmed crank cycle
Dimensional Drawing
Dimensional Drawing
| Generator without sound shield
|
Width: 449 mm (17.68 in.) Height: 536 mm (21.12 in.) Length: 743 mm (29.26 in.) Weight, dry: 181 kg (398 lbs) Weight, wet: 185 kg (407 lbs) |
