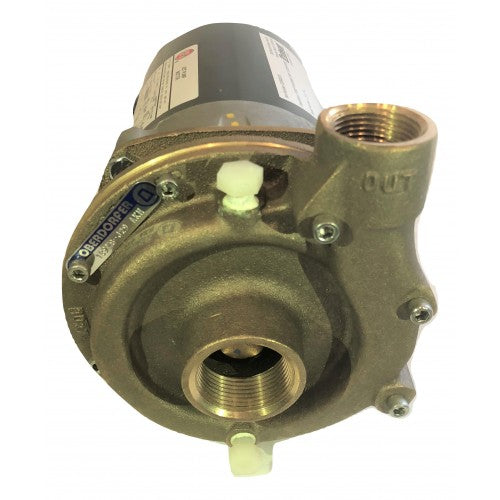

Cruisair REPLACEMENT PUMP for PH3000BXT - 3000 GPH, 115 / 230V = (P065 Pump)
Rated 3.5/5 based on 11 customer reviews

Cruisair REPLACEMENT PUMP for PH3000BXT - 3000 GPH, 115 / 230V = (P065 Pump)

Available: Low in Stock
Wishlist Compare
$1,428.00 $1,680.00
Successful pre-order.Thanks for contacting us!

THIS IS A REPLACEMENT PUMP for the PH3000BXT

Centrifugal pumps have a single rotating metal impeller. Liquid enters at the center and is thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient, pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines.

Consequently, a relief valve is not required. The liquid flow varies directly as the pump speed—the higher the speed the greater the flow. Horsepower required varies directly as flow and pressure. Maximum horsepower is required with a wide open discharge line. This is the point of maximum flow. With a throttled discharge, the flow decreases at a greater rate than the pressure increases thereby requiring less horsepower at the higher pressures. This is known as an “unloading” feature of the pump.


Features
  • Rugged Bronze Construction
  • A Standard in the Marine Air Conditioning Industry
  • Extremely Quiet Operation
  • O-Ring Housing seal eliminates gasket problems
  • Polytetrafluoroethylene (PTFE) Barrier Seal to protect motor bearings
  • Handles Contaminated Liquids
  • Discharge port orientation flexibility-8 positions
  • Mechanical Seal - Carbon/Ceramic, Nitrile - standard, Fluoroelastomer (S10) optional, Polytetrafluoroethylene (PTFE)(S11) optional
  • Pump Heads mount to standard footed nema 56J Jet Pump Motors
  • Shafts: 316 Passivated Stainless
  • Multiple motor options available
  • For Industrial Version - see Model 700 series
Model PH3000BXT / (P060)
Part Number 225500272 / (P060)
Flow Rate  3000 GPH
Power  1/2 HP
Phase Single
Voltage 115/230 V
Inlet 1 1/4" FPT
Outlet 1" FPT
Weight 33 lbs

THIS IS A REPLACEMENT PUMP for the PH3000BXT

Centrifugal pumps have a single rotating metal impeller. Liquid enters at the center and is thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient, pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines.

Consequently, a relief valve is not required. The liquid flow varies directly as the pump speed—the higher the speed the greater the flow. Horsepower required varies directly as flow and pressure. Maximum horsepower is required with a wide open discharge line. This is the point of maximum flow. With a throttled discharge, the flow decreases at a greater rate than the pressure increases thereby requiring less horsepower at the higher pressures. This is known as an “unloading” feature of the pump.


Features
  • Rugged Bronze Construction
  • A Standard in the Marine Air Conditioning Industry
  • Extremely Quiet Operation
  • O-Ring Housing seal eliminates gasket problems
  • Polytetrafluoroethylene (PTFE) Barrier Seal to protect motor bearings
  • Handles Contaminated Liquids
  • Discharge port orientation flexibility-8 positions
  • Mechanical Seal - Carbon/Ceramic, Nitrile - standard, Fluoroelastomer (S10) optional, Polytetrafluoroethylene (PTFE)(S11) optional
  • Pump Heads mount to standard footed nema 56J Jet Pump Motors
  • Shafts: 316 Passivated Stainless
  • Multiple motor options available
  • For Industrial Version - see Model 700 series
Model PH3000BXT / (P060)
Part Number 225500272 / (P060)
Flow Rate  3000 GPH
Power  1/2 HP
Phase Single
Voltage 115/230 V
Inlet 1 1/4" FPT
Outlet 1" FPT
Weight 33 lbs
