Schneider Electric - Altivar Machine ATV320U40N4C
Rated 3.5/5 based on 11 customer reviews

Schneider Electric - Altivar Machine ATV320U40N4C

Available: In Stock
Wishlist Compare
$1,550.00
Successful pre-order.Thanks for contacting us!

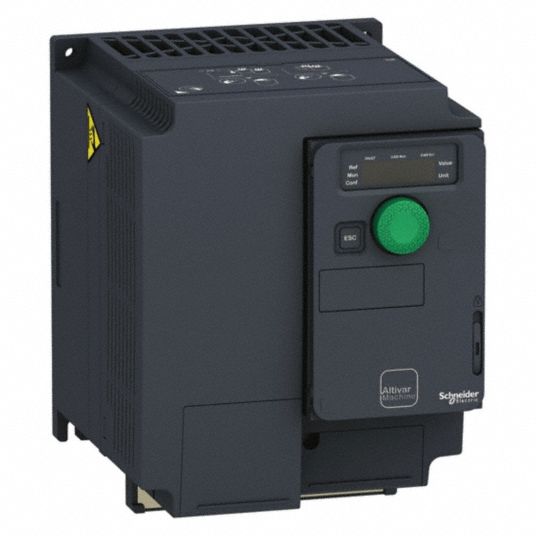

Variable speed drive, Altivar Machine ATV320, 4 kW, 380 - 500 V, 3 phases, compact.

The Altivar Machine ATV320 IP20 product is a variable speed drive for three-phase asynchronous and synchronous motors from 0.18 to 15 kW.

The Altivar Machine ATV320 drive is robust, simple to commission, and easy to integrate into different machine layouts and cabinets. It can also be integrated into commonly used automation architectures.

Altivar Machine ATV320 variable speed drives are particularly suitable for applications involving simple industrial machines. Furthermore, Altivar Machine ATV320 embeds many practical functions so that advanced application requirements can be covered.

Altivar Machine ATV320 is designed to improve machine performance and increase machine availability while reducing the total machine cost.

Item  Variable Frequency Drive
Max. HP 5 hp
Input Voltage 380 to 480V AC
Max. Output Amps 9.5 A
Output Voltage 380 to 480V AC
Input Phase AC 1 or 3
Output Phase AC 3
With Bypass / No Bypass No Bypass
With Line Contactor / No Line Contactor No Line Contactor
Starting Torque 150%
Torque @ 1 Hz 150 %
Input Frequency 50/60 Hz
Output Frequency Range 0.1 to 599 Hz
Adjustable Acceleration Time 0 to 6000 sec
Adjustable Deceleration Time 0 to 6000 sec
Dynamic Braking Internal Brake Chopper
Circuit/External Resistor
Height 7.24 in
Width 5.51 in
Depth 5.9 in
Control Type Keypad/Remote/Terminal/Network
Key Pad Lockout Yes
Start/Stop Control Logic Input/Keypad/Remote/Network
Protection IP20
Control Method Sensor Less Vector, Standard V/Hz, 5-Segment V/Hz, Synchronous Motor, V/Hz Quadratic VT, Energy Savings
Accepts Input Control Signal 0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
Display Type LED
Displays Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Digital Readout Yes
For Use With three-phase Asynchronous, Synchronous Motors
Standards 3C3/3S2 Conforming to IEC/EN 60721

Variable speed drive, Altivar Machine ATV320, 4 kW, 380 - 500 V, 3 phases, compact.

The Altivar Machine ATV320 IP20 product is a variable speed drive for three-phase asynchronous and synchronous motors from 0.18 to 15 kW.

The Altivar Machine ATV320 drive is robust, simple to commission, and easy to integrate into different machine layouts and cabinets. It can also be integrated into commonly used automation architectures.

Altivar Machine ATV320 variable speed drives are particularly suitable for applications involving simple industrial machines. Furthermore, Altivar Machine ATV320 embeds many practical functions so that advanced application requirements can be covered.

Altivar Machine ATV320 is designed to improve machine performance and increase machine availability while reducing the total machine cost.

Item  Variable Frequency Drive
Max. HP 5 hp
Input Voltage 380 to 480V AC
Max. Output Amps 9.5 A
Output Voltage 380 to 480V AC
Input Phase AC 1 or 3
Output Phase AC 3
With Bypass / No Bypass No Bypass
With Line Contactor / No Line Contactor No Line Contactor
Starting Torque 150%
Torque @ 1 Hz 150 %
Input Frequency 50/60 Hz
Output Frequency Range 0.1 to 599 Hz
Adjustable Acceleration Time 0 to 6000 sec
Adjustable Deceleration Time 0 to 6000 sec
Dynamic Braking Internal Brake Chopper
Circuit/External Resistor
Height 7.24 in
Width 5.51 in
Depth 5.9 in
Control Type Keypad/Remote/Terminal/Network
Key Pad Lockout Yes
Start/Stop Control Logic Input/Keypad/Remote/Network
Protection IP20
Control Method Sensor Less Vector, Standard V/Hz, 5-Segment V/Hz, Synchronous Motor, V/Hz Quadratic VT, Energy Savings
Accepts Input Control Signal 0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
Display Type LED
Displays Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Digital Readout Yes
For Use With three-phase Asynchronous, Synchronous Motors
Standards 3C3/3S2 Conforming to IEC/EN 60721
