Webasto BlueCool A-Series Air handler 230V 50/60hz A36 Compact 36000 BTU
Rated 3.5/5 based on 11 customer reviews

Webasto BlueCool A-Series Air handler 230V 50/60hz A36 Compact 36000 BTU

Available: In Stock
Wishlist Compare
$2,238.63 $2,798.29
Successful pre-order.Thanks for contacting us!
  • Order within

The central chiller unit is typically installed in the engine room, providing chilled water / glycol to all cabins via a water circuit. One or more air handler(s) in each cabin are fitted to generate the required cooling capacities individually in each room.

Webasto provides an completely new designed air handler portfolio in 3 different layouts with a performance range from 4,000 – 36,000 BTU / h to suit all sizes and space requirements of your boat. With the innovative Webasto Instant Drain system for smart management of condensate and the modular concept the new BlueCool A-Series is the perfect solution for all your needs. In addition to horizontal and vertical layouts, accessories such as Electrical heating, Flow control valve or the electronic silencer for significant reduction of blower noise can fine-tune your applications.

Features
  • New modular system with various options
  • Innovative Webasto Instant Drain Condensate Management
  • High-quality stainless steel design
  • High performance with high cooling capacity and high air flow
  • Super Silent with flexible vibration isolation mounts & larger ducts to reduce noise from air speed
  • Oversized heat exchanger tested under tropical condition
Order numbers WBCL1209015A
Capacity (BTU/h) ** 36,000
Capacity (kW) ** 10.7
Voltage (V) 230 (-15%/+10%)
Frequency (Hz) 50/60 (+-5%)
Air flow (m³/h) * 1550
Air flow (cfm) * 912
Ø Blower connection (mm) 2 x 150 (round)
Ø Blower connection (inch) 2 x 6 (round)
Weight (kg) 21
Weight (lbs) 46.3
Current draw running (A) 1.3
Ø Chilled water connection 3/4''

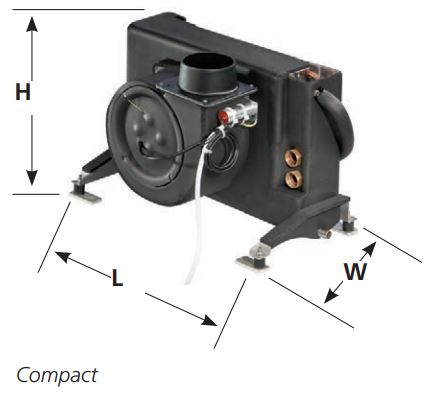

Dimensions H x W x L (mm) 487 x 302 x 701
Dimensions H x W x L (inch) 19.2x 11.9 x 27.6
Dimensions with valve H x W x L (mm) 487 x 302 x 701
Dimensions with valve H x W x L (inch) 19.2 x 11.9 x 22.6
Minimum chilled water flow (l/min.) 31
Number of blowers 2
Max. ambient temperature (°C) 50
Pressure loss chilled water (bar) 0.34
Number of condensate drains 2
Ø Condensate drain (mm) 16
* With 2 m of air duct, one 90° bend, air outlet grille at 230 V, 50 Hz
** Intake air of 32°C/47% rh, water inlet temperature of 5°C and at 230 V, 50 Hz

Technical Specification

The central chiller unit is typically installed in the engine room, providing chilled water / glycol to all cabins via a water circuit. One or more air handler(s) in each cabin are fitted to generate the required cooling capacities individually in each room.

Webasto provides an completely new designed air handler portfolio in 3 different layouts with a performance range from 4,000 – 36,000 BTU / h to suit all sizes and space requirements of your boat. With the innovative Webasto Instant Drain system for smart management of condensate and the modular concept the new BlueCool A-Series is the perfect solution for all your needs. In addition to horizontal and vertical layouts, accessories such as Electrical heating, Flow control valve or the electronic silencer for significant reduction of blower noise can fine-tune your applications.

Features
  • New modular system with various options
  • Innovative Webasto Instant Drain Condensate Management
  • High-quality stainless steel design
  • High performance with high cooling capacity and high air flow
  • Super Silent with flexible vibration isolation mounts & larger ducts to reduce noise from air speed
  • Oversized heat exchanger tested under tropical condition
Order numbers WBCL1209015A
Capacity (BTU/h) ** 36,000
Capacity (kW) ** 10.7
Voltage (V) 230 (-15%/+10%)
Frequency (Hz) 50/60 (+-5%)
Air flow (m³/h) * 1550
Air flow (cfm) * 912
Ø Blower connection (mm) 2 x 150 (round)
Ø Blower connection (inch) 2 x 6 (round)
Weight (kg) 21
Weight (lbs) 46.3
Current draw running (A) 1.3
Ø Chilled water connection 3/4''
Dimensions H x W x L (mm) 487 x 302 x 701
Dimensions H x W x L (inch) 19.2x 11.9 x 27.6
Dimensions with valve H x W x L (mm) 487 x 302 x 701
Dimensions with valve H x W x L (inch) 19.2 x 11.9 x 22.6
Minimum chilled water flow (l/min.) 31
Number of blowers 2
Max. ambient temperature (°C) 50
Pressure loss chilled water (bar) 0.34
Number of condensate drains 2
Ø Condensate drain (mm) 16
* With 2 m of air duct, one 90° bend, air outlet grille at 230 V, 50 Hz
** Intake air of 32°C/47% rh, water inlet temperature of 5°C and at 230 V, 50 Hz

Technical Specification
