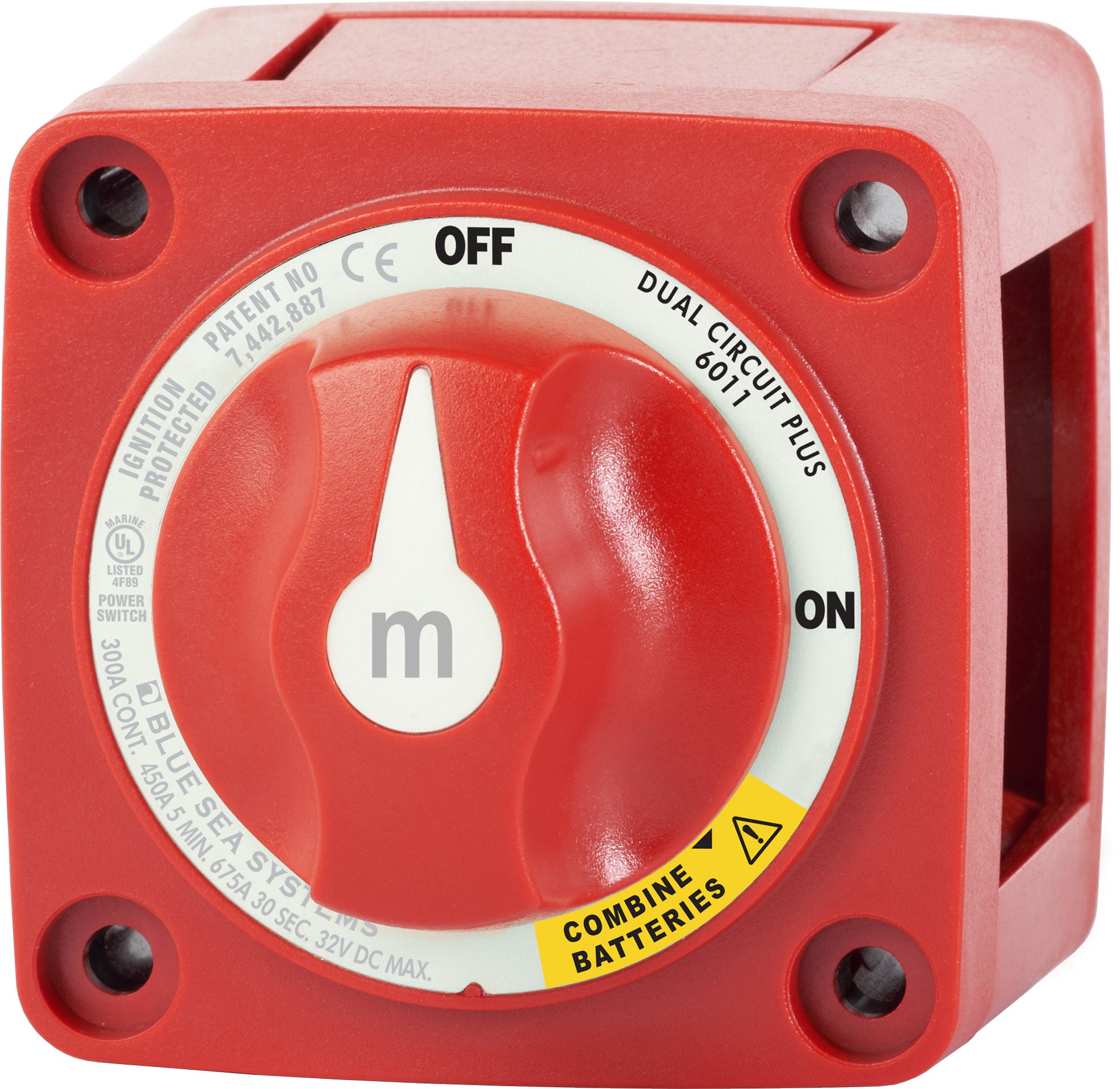

Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus

Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus
Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus
SKU: BSS6011
$76.13
Save

🚚 FREE SHIPPING INCLUDED 🚚

Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus

SKU BSS6011
Product type Electrical
List price
Sale price
$76.13
Date Created 18 / 05 / 2024
Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus

Product details

Blue Sea Systems m-Series Mini Dual Circuit Plus™ Battery Switch - Red

Model: 6011-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Isolating cover with snap-on sections protects rear contacts
  • Case design allows surface or rear panel mounting
  • Waterproof — rated IP66 from water projected in powerful jets
  • One-piece stainless flange nuts ensure safe and secure connections
  • Breakout tabs allow wire access in any direction
  • Make before break contact design allows switching between battery banks without power interruption

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Specifications
Switch Type Dual Circuit Plus
Color Red
Switch Positions 3
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32vDC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating 300A
Intermittent Rating 450A (5 min)
Cranking Rating 30 sec 675A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm )
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8" - 16 (M10)

Product details

Blue Sea Systems m-Series Mini Dual Circuit Plus™ Battery Switch - Red

Model: 6011-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Isolating cover with snap-on sections protects rear contacts
  • Case design allows surface or rear panel mounting
  • Waterproof — rated IP66 from water projected in powerful jets
  • One-piece stainless flange nuts ensure safe and secure connections
  • Breakout tabs allow wire access in any direction
  • Make before break contact design allows switching between battery banks without power interruption

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Specifications
Switch Type Dual Circuit Plus
Color Red
Switch Positions 3
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32vDC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating 300A
Intermittent Rating 450A (5 min)
Cranking Rating 30 sec 675A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm )
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8" - 16 (M10)
